COB Strip Lights
Single Color COB Strip Light main product view
Single Color COB Strip Light
Static-color COB line for signage, themed interiors, and decorative accents using fixed red, blue, green, amber, purple, cyan, pink, ice blue, or lemon yellow.
Where this series fits for buyer selection
Static-color COB line for signage, themed interiors, and decorative accents using fixed red, blue, green, amber, purple, cyan, pink, ice blue, or lemon yellow.
Red, blue, green, amber, purple, cyan, pink, ice blue, and lemon yellow.
Single-voltage option that simplifies the first commercial comparison.
Static-color COB density for smooth decorative accent lines.
The current catalog series stays on one main board width and cut section.
Series Gallery

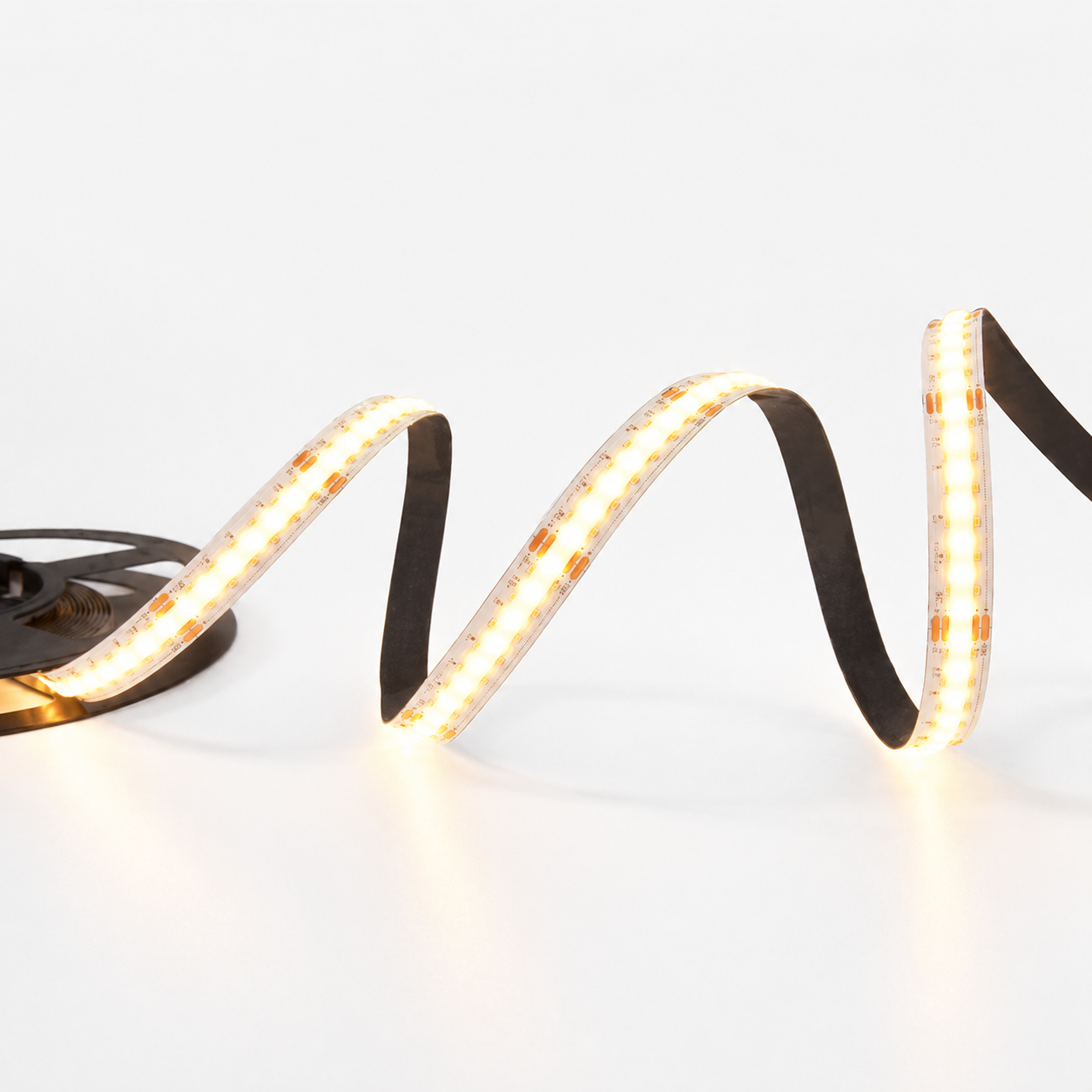

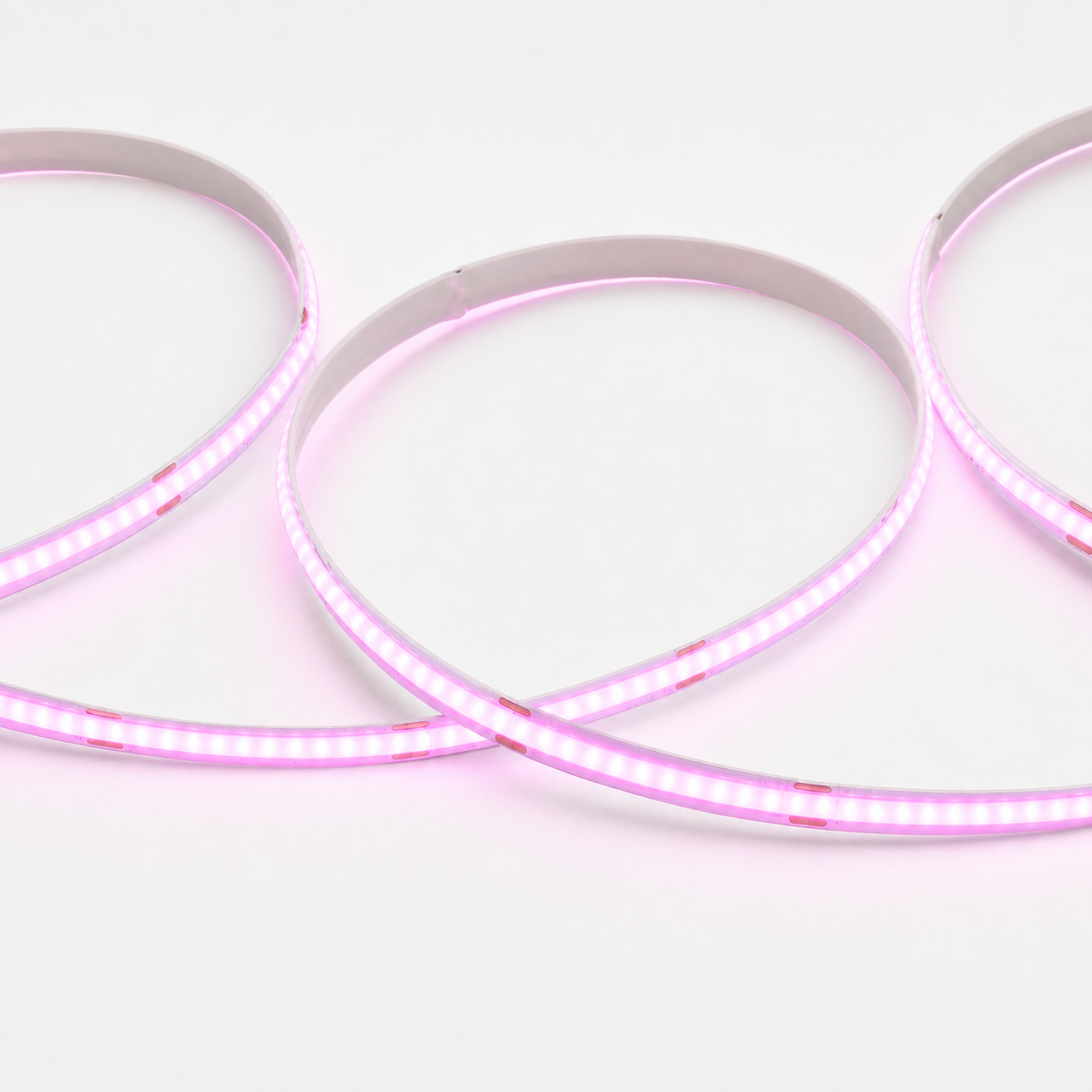

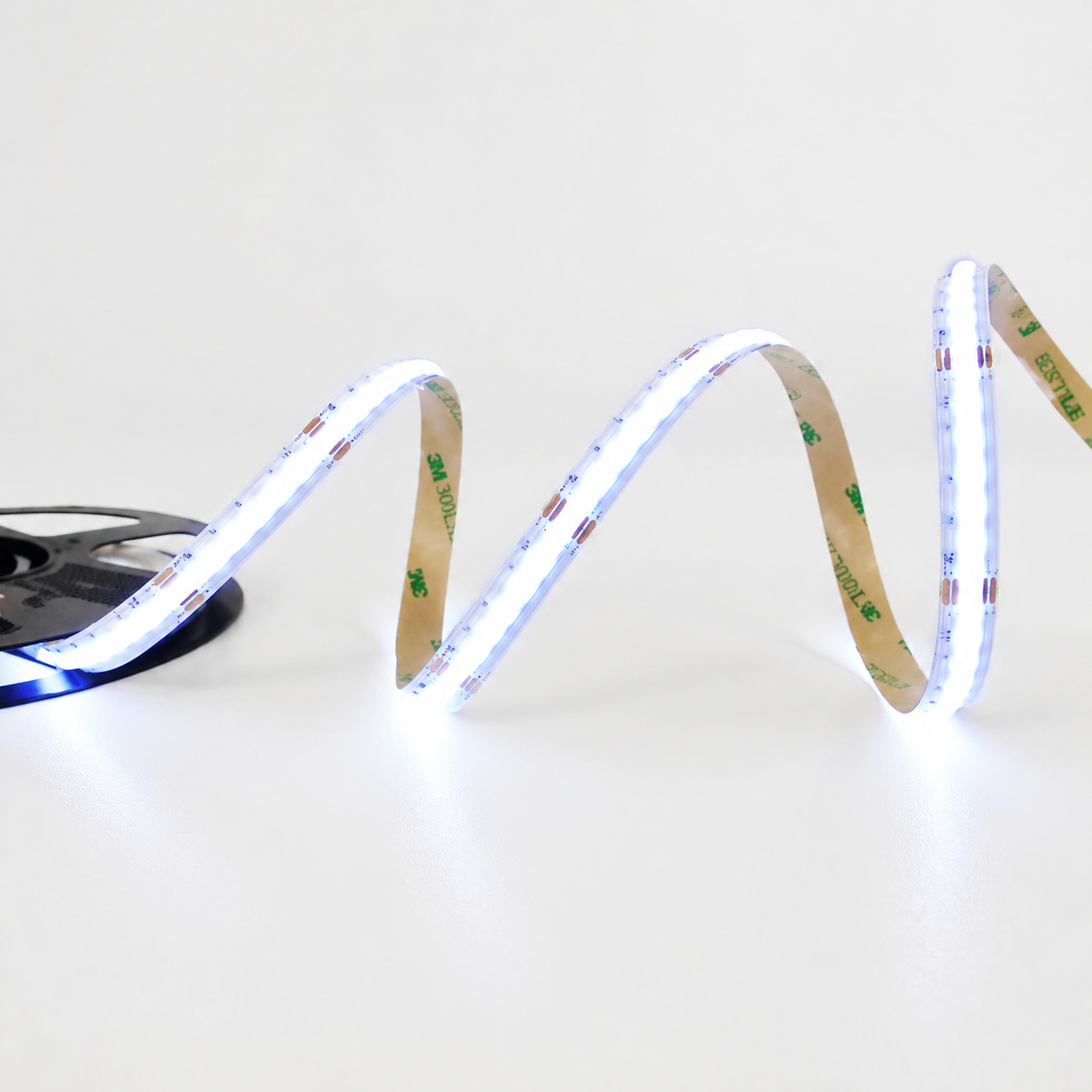

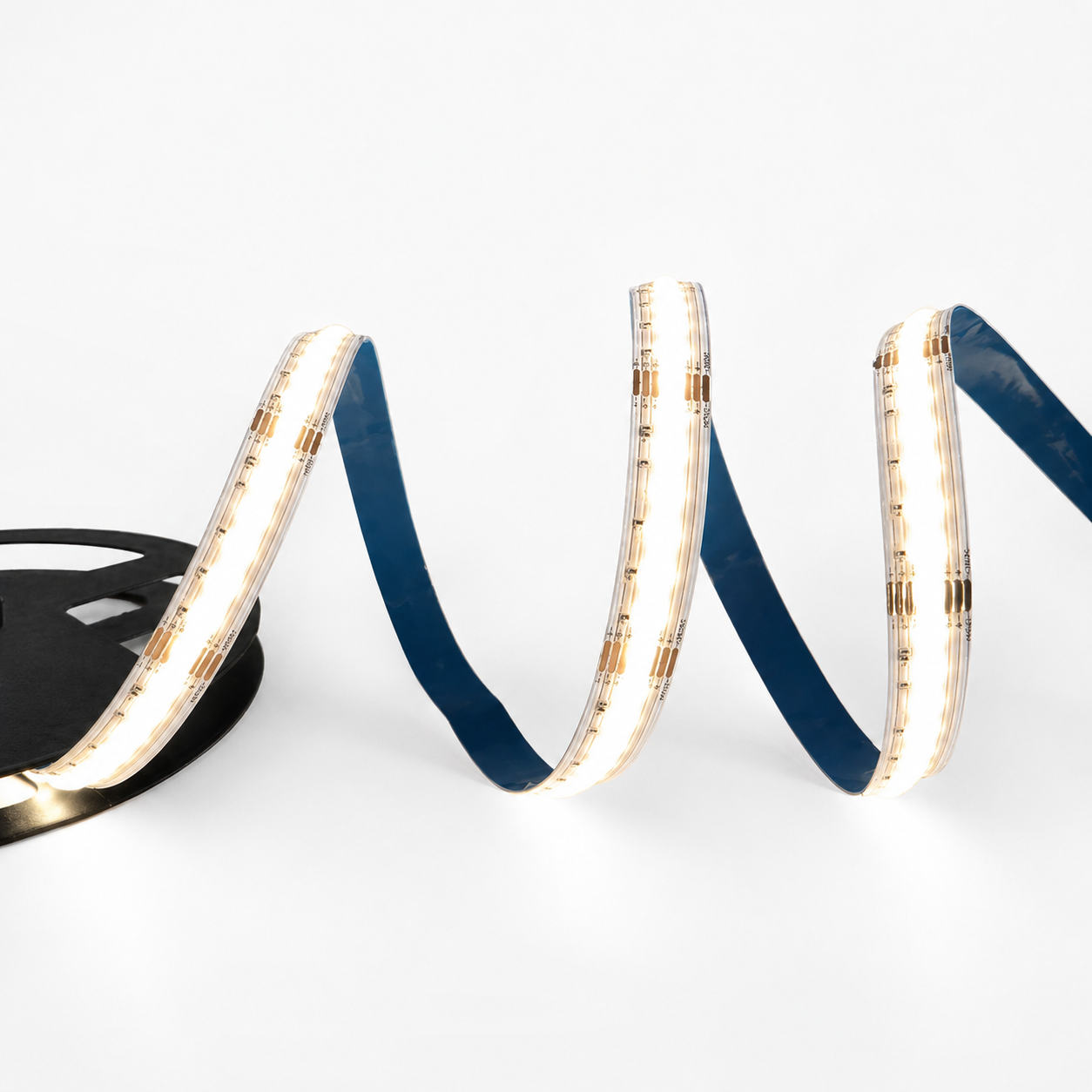

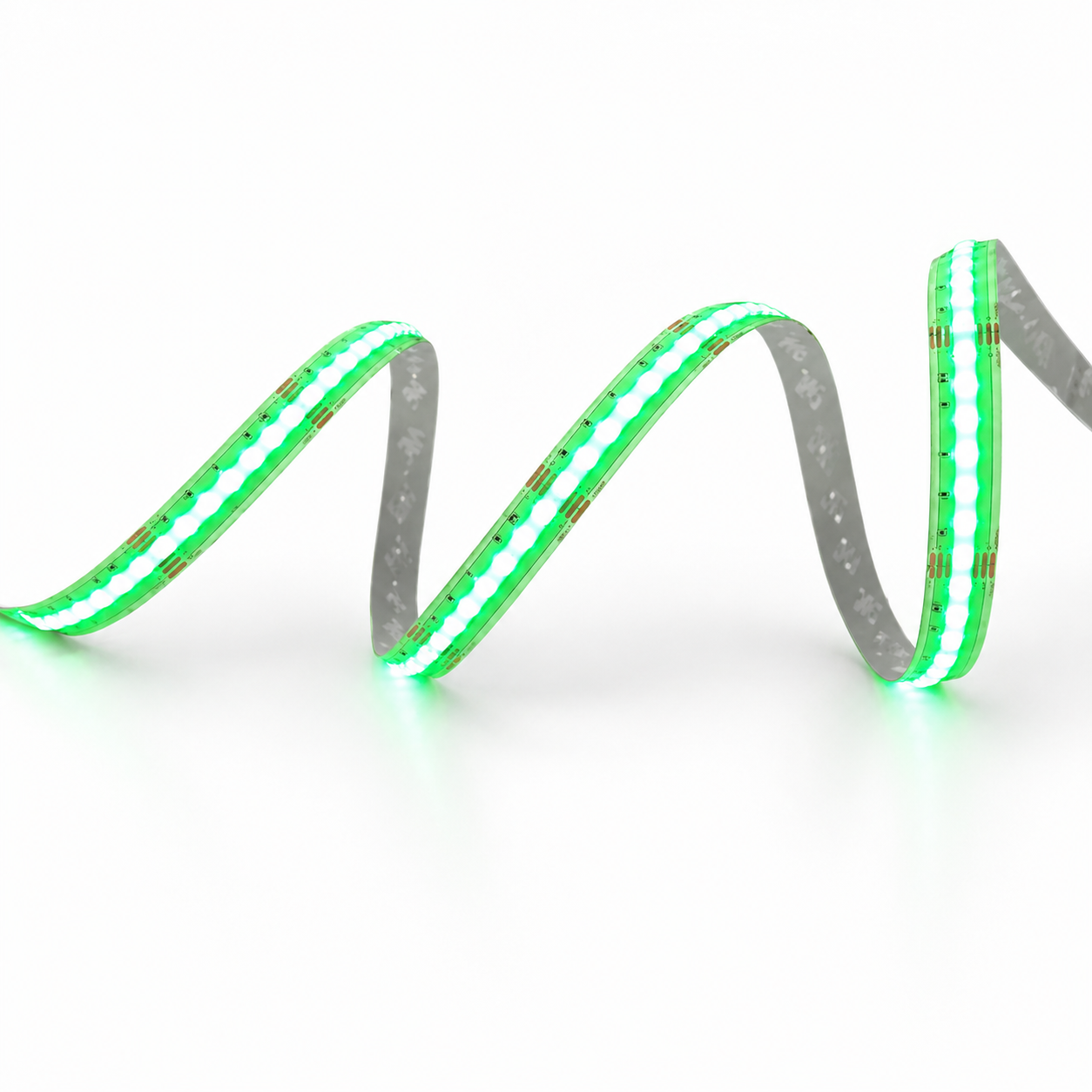

Product views for Single Color COB Strip Light
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for Single Color COB Strip Light
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
Signage and logo-outline accents
Single Color COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Brand-color decorative lighting
Single Color COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Atmosphere and event detail lines
Single Color COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Themed retail and entertainment spaces
Single Color COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Architectural color accents indoors
Single Color COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects that need one fixed color instead of controller-heavy RGB
Single Color COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for Single Color COB Strip Light
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| Light engine | Catalog-backed flexible COB strip | Aligned with the Wismart COB Series 2026 catalog so buyers can compare against a defined product family. |
| Voltage option | DC 24V static-color COB option | Final driver and run-length plan should be confirmed before quotation closes. |
| Color / CCT direction | Red, blue, green, amber, purple, cyan, pink, ice blue, and lemon yellow | Lock the exact white or color-control direction before sample preparation. |
| Output positioning | 320 led/m colored COB line, 10W/m | Use this as the first buyer-facing output range before final model confirmation. |
| Structure direction | 8mm colored COB strip for decorative and visual-accent use | The correct choice depends on installation width, cut interval, color-control need, and power planning. |
| Typical project fit | Signage accents, atmosphere lighting, decorative lines, branded spaces, and fixed-color highlights | Use the application description to guide the buyer into the right family before SKU expansion. |
Catalog Model Table
Wismart COB Series 2026 model options
These catalog-backed rows help buyers narrow the correct model before sample approval and quotation.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | Cutting Section |
|---|---|---|---|---|---|---|
| WS-COB-320-R-8MM | DC 24V | 10W | 320 led/m | Red | N/A | 5cm |
| WS-COB-320-B-8MM | DC 24V | 10W | 320 led/m | Blue | N/A | 5cm |
| WS-COB-320-G-8MM | DC 24V | 10W | 320 led/m | Green | N/A | 5cm |
| WS-COB-320-AM-8MM | DC 24V | 10W | 320 led/m | Amber | N/A | 5cm |
| WS-COB-320-P-8MM | DC 24V | 10W | 320 led/m | Purple | N/A | 5cm |
| WS-COB-320-C-8MM | DC 24V | 10W | 320 led/m | Cyan | N/A | 5cm |
| WS-COB-320-PK-8MM | DC 24V | 10W | 320 led/m | Pink | N/A | 5cm |
| WS-COB-320-IB-8MM | DC 24V | 10W | 320 led/m | Ice Blue | N/A | 5cm |
| WS-COB-320-LY-8MM | DC 24V | 10W | 320 led/m | Lemon Yellow | N/A | 5cm |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Lock the fixed color first
Confirm the exact target color before anything else, because this series is organized around color choice first.
Check whether fixed color beats RGB
Some buyers only need one stable color, and this series can simplify cost and control compared with RGB.
Align brightness and install context
Even on decorative jobs, the strip still needs to match the real profile, run length, and scene intent.
Group sample and packing by color
When several colors are needed, sample handling and carton labeling should be organized color by color from the start.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Choose the exact fixed color first, because this page covers multiple static-color options under one series.
Confirm whether a fixed color is truly better than RGB / RGBW for the project and maintenance plan.
Check if the installation stays indoor standard or needs a protected structure later.
Align dimming expectation, reel plan, and sample quantity around the final chosen color.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest Single Color COB Strip Light datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
How is this series different from RGB COB?
This series is for one fixed color per SKU, which simplifies control and can be better for projects that do not need dynamic scene changes.
Can buyers request multiple colors in one inquiry?
Yes. The page groups the fixed-color COB options together, so the inquiry can state the target colors and expected quantities.
Is this series only for signage?
No. It also fits decorative accents, themed interiors, entertainment details, and brand-color visual lines.
Why is white not shown here?
This page is reserved for the colored single-color COB options, while white-light COB is covered by the other catalog-backed COB groups.
Ready to quote Single Color COB Strip Light?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
