COB Strip Lights
RGB / RGBW COB Strip Light main product view
RGB / RGBW COB Strip Light
RGB and RGBW COB series for retail, decorative, and atmosphere-lighting programs that need smoother continuous color lines.
Where this series fits for buyer selection
RGB and RGBW COB series for retail, decorative, and atmosphere-lighting programs that need smoother continuous color lines.
Choose between pure dynamic color and color-plus-white scene requirements.
Dense COB color-control options for smoother visual continuity.
Board width and structure should match channel size and control plan.
Cut section changes materially across the RGB / RGBW catalog models.

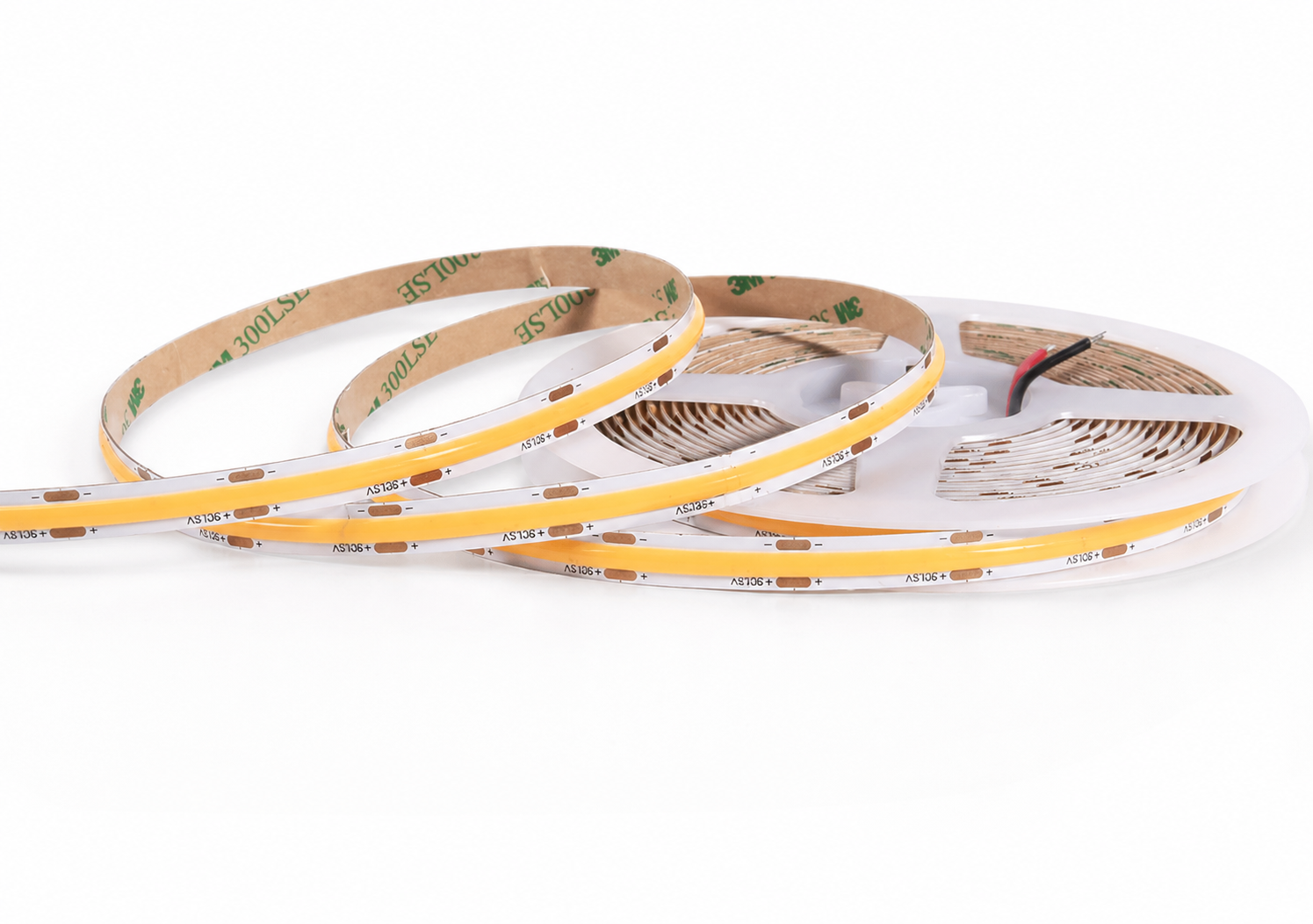

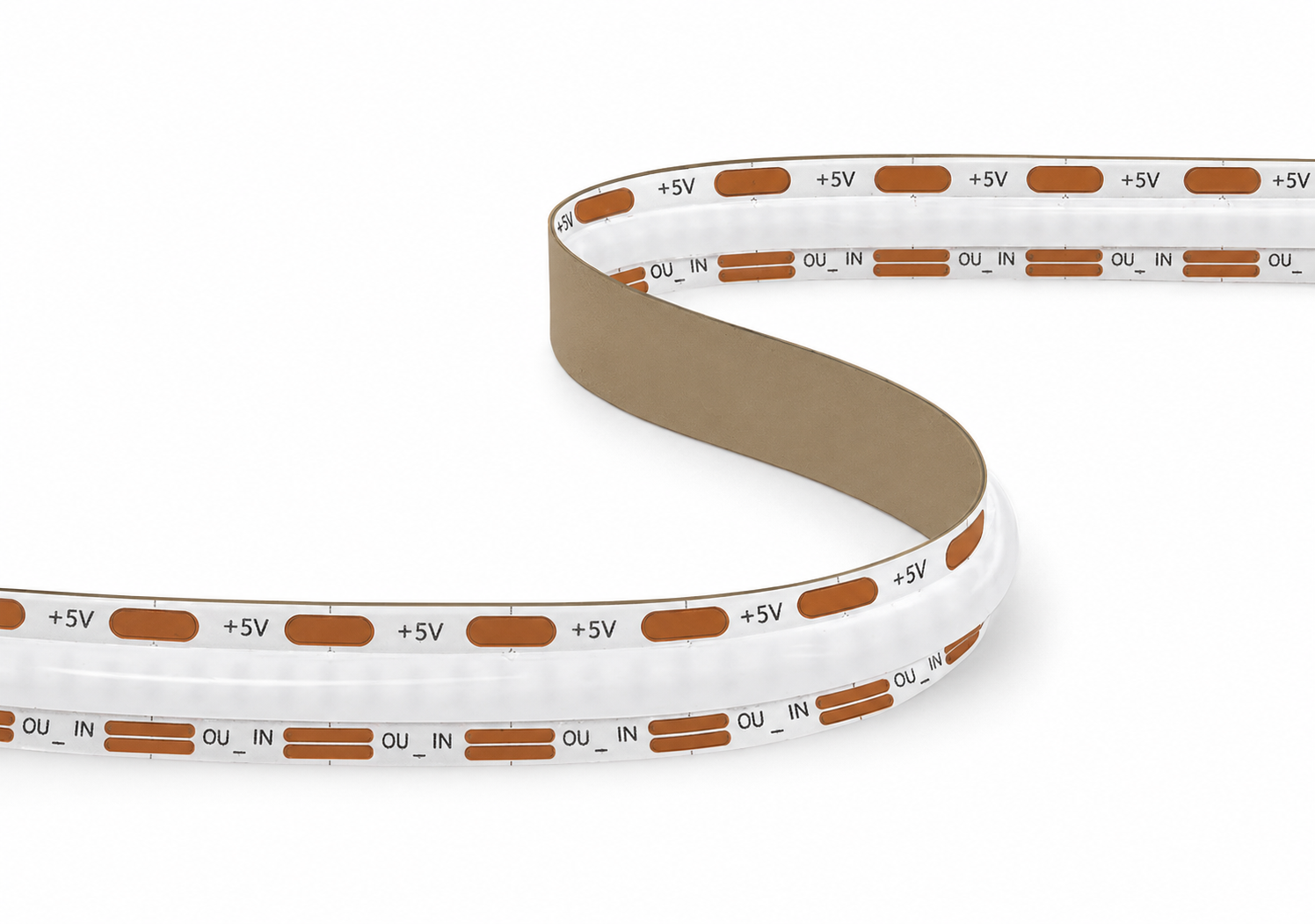

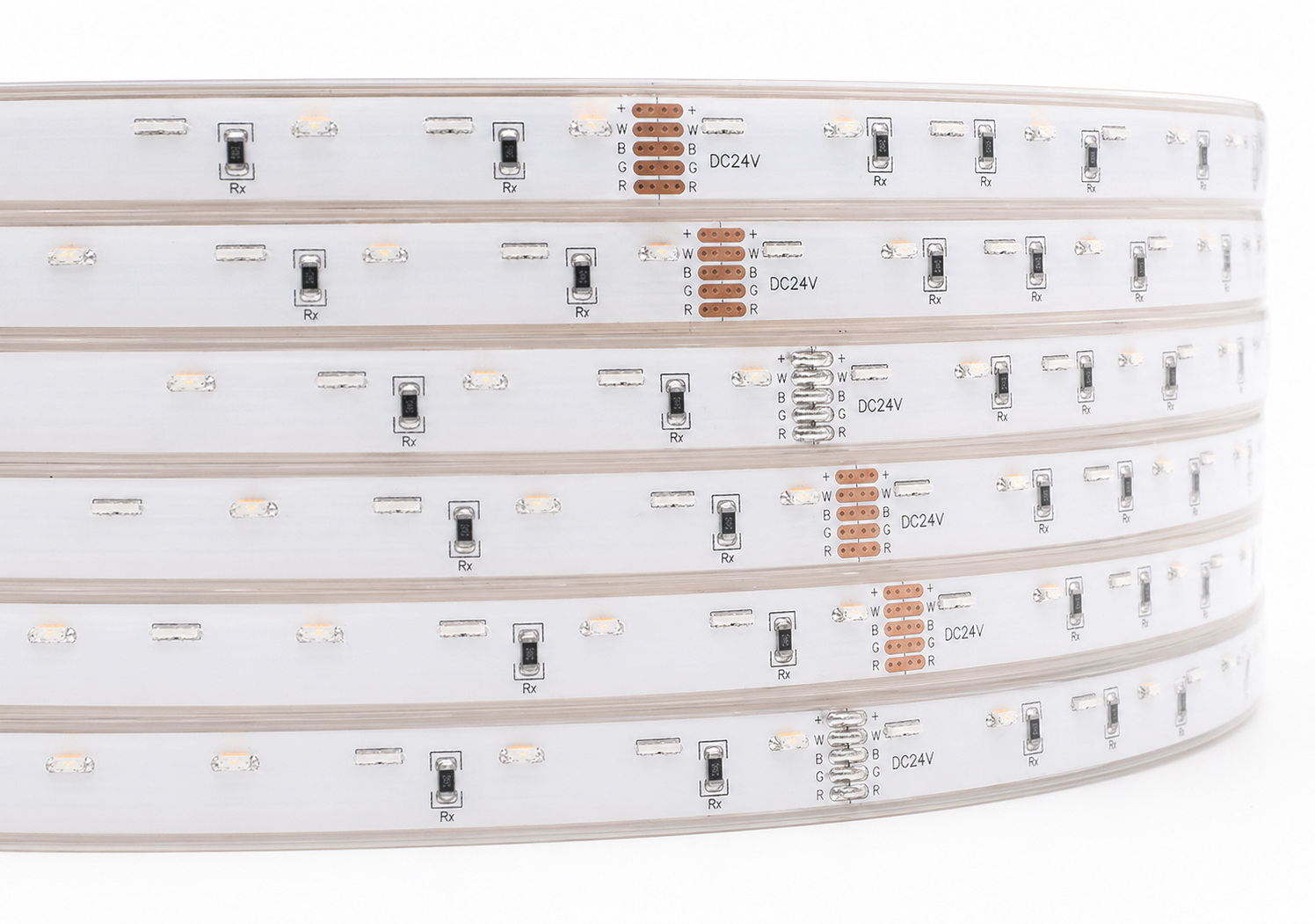

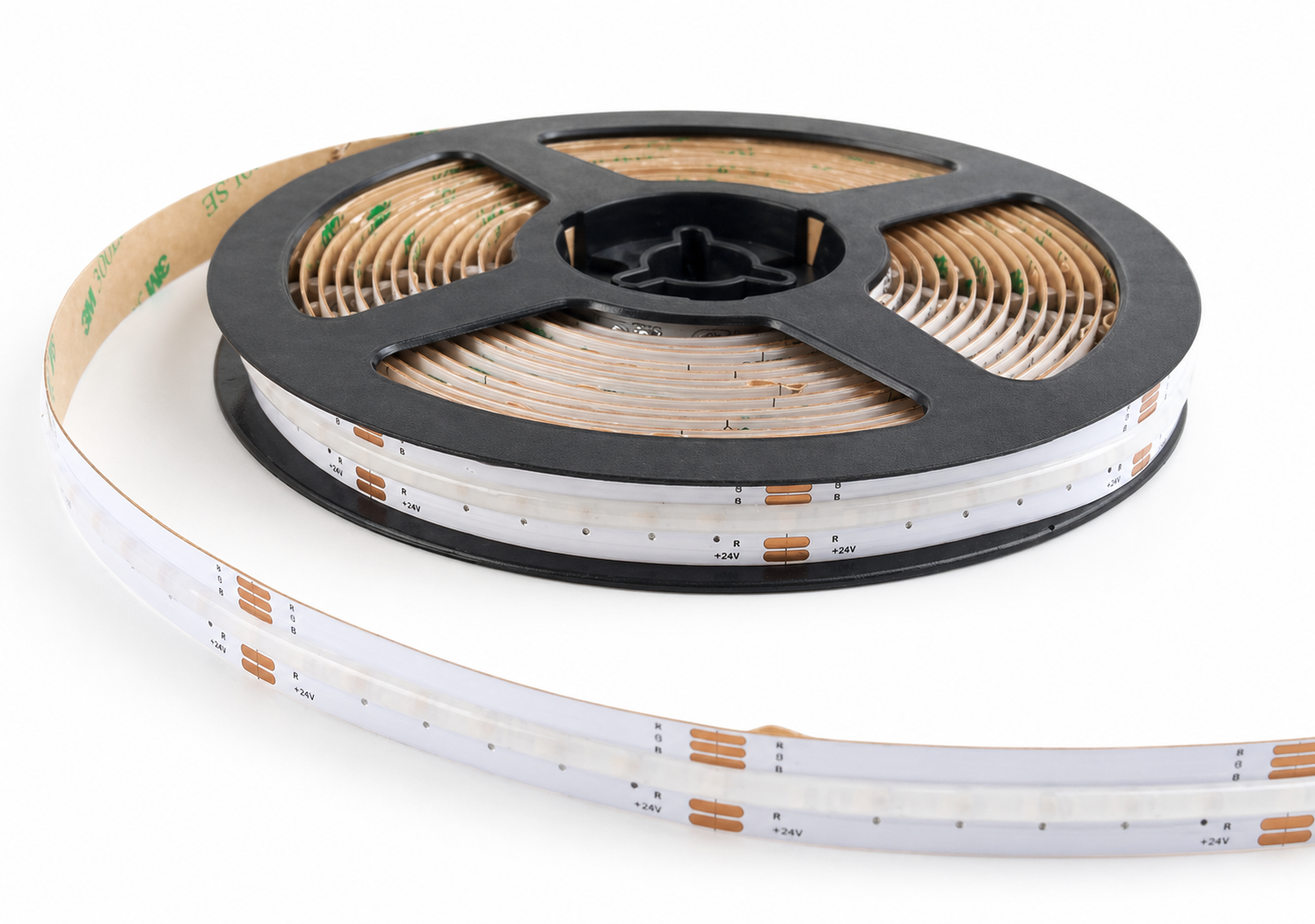

Series Gallery
Product views for RGB / RGBW COB Strip Light
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for RGB / RGBW COB Strip Light
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
Retail feature and display lighting
RGB / RGBW COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Bar, club, and hospitality atmosphere scenes
RGB / RGBW COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Brand walls and decorative outlines
RGB / RGBW COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Entertainment and event-lighting accents
RGB / RGBW COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Architectural color-wash detail lines
RGB / RGBW COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects that need dynamic color over premium dotless COB
RGB / RGBW COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for RGB / RGBW COB Strip Light
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| Light engine | Catalog-backed flexible COB strip | Aligned with the Wismart COB Series 2026 catalog so buyers can compare against a defined product family. |
| Voltage option | DC 12V / 24V and DC 24V color-control options | Final driver and run-length plan should be confirmed before quotation closes. |
| Color / CCT direction | RGB and RGBW COB, CRI N/A | Lock the exact white or color-control direction before sample preparation. |
| Output positioning | 576, 672, and 784 led/m COB color-control lines | Use this as the first buyer-facing output range before final model confirmation. |
| Structure direction | RGB / RGBW COB strip for dynamic color and atmosphere lighting | The correct choice depends on installation width, cut interval, color-control need, and power planning. |
| Typical project fit | Retail feature lines, entertainment, decorative spaces, and dynamic scene control | Use the application description to guide the buyer into the right family before SKU expansion. |
Catalog Model Table
Wismart COB Series 2026 model options
These catalog-backed rows help buyers narrow the correct model before sample approval and quotation.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | Cutting Section |
|---|---|---|---|---|---|---|
| WS-COB-576-RGB-8/10MM | DC 12V / 24V | 14W | 576 led/m | RGB | N/A | 3.125 / 6.25cm |
| WS-COB-672-RGB-10MM | DC 24V | 15W | 672 led/m | RGB | N/A | 3.1cm |
| WS-COB-784-RGBW-12MM | DC 24V | 16W | 784 led/m | RGBW | N/A | 7.1cm |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Choose RGB or RGBW first
The color-control direction should be locked before comparing model numbers, because RGBW changes the project logic.
Confirm controller and channel width
Board width, cut section, and control path are the first technical constraints to settle.
Match the sample to the target scene
Retail, hospitality, and decorative buyers should evaluate this series by actual scene effect, not only by strip photos.
Close packing and wiring notes
Color projects need clearer reel, label, and wiring-direction communication before production planning starts.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Decide whether the buyer needs RGB only or RGBW with a dedicated white-light path.
Confirm controller, dimming, and signal path before sample approval, because this series depends on the control chain.
Check board width and cut section against the actual channel or profile dimensions.
Align the expected scene style early so the right model is chosen for decorative color versus color-plus-white use.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest RGB / RGBW COB Strip Light datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
How should buyers choose RGB or RGBW COB?
Use RGB when the project is purely color-driven. Use RGBW when the buyer also needs a dedicated white-light effect in the same project.
Why does this page mention several board widths?
The current catalog spans 8mm, 10mm, and 12mm directions, so installation width and control structure should be confirmed before quoting.
Is CRI relevant for all RGB models?
Not in the same way as white-light COB. That is why the catalog keeps CRI as N/A for these color-control options.
What makes this series different from standard RGB SMD?
This COB series is for continuous color lines, so buyers usually choose it for smoother visual presentation rather than only for price.
Ready to quote RGB / RGBW COB Strip Light?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
