COB Strip Lights
Free Cut COB Strip Light main product view
Free Cut COB Strip Light
Free-cut COB series for installers who need flexible length handling on site instead of standard cut-section limits.
Where this series fits for buyer selection
Free-cut COB series for installers who need flexible length handling on site instead of standard cut-section limits.
The key advantage is flexible field length handling instead of fixed cut sections.
Two density options for balancing light continuity and project budget.
Commercial power range for installer-focused custom-length runs.
Voltage still needs to match the run length and feed strategy even on free-cut projects.
Series Gallery

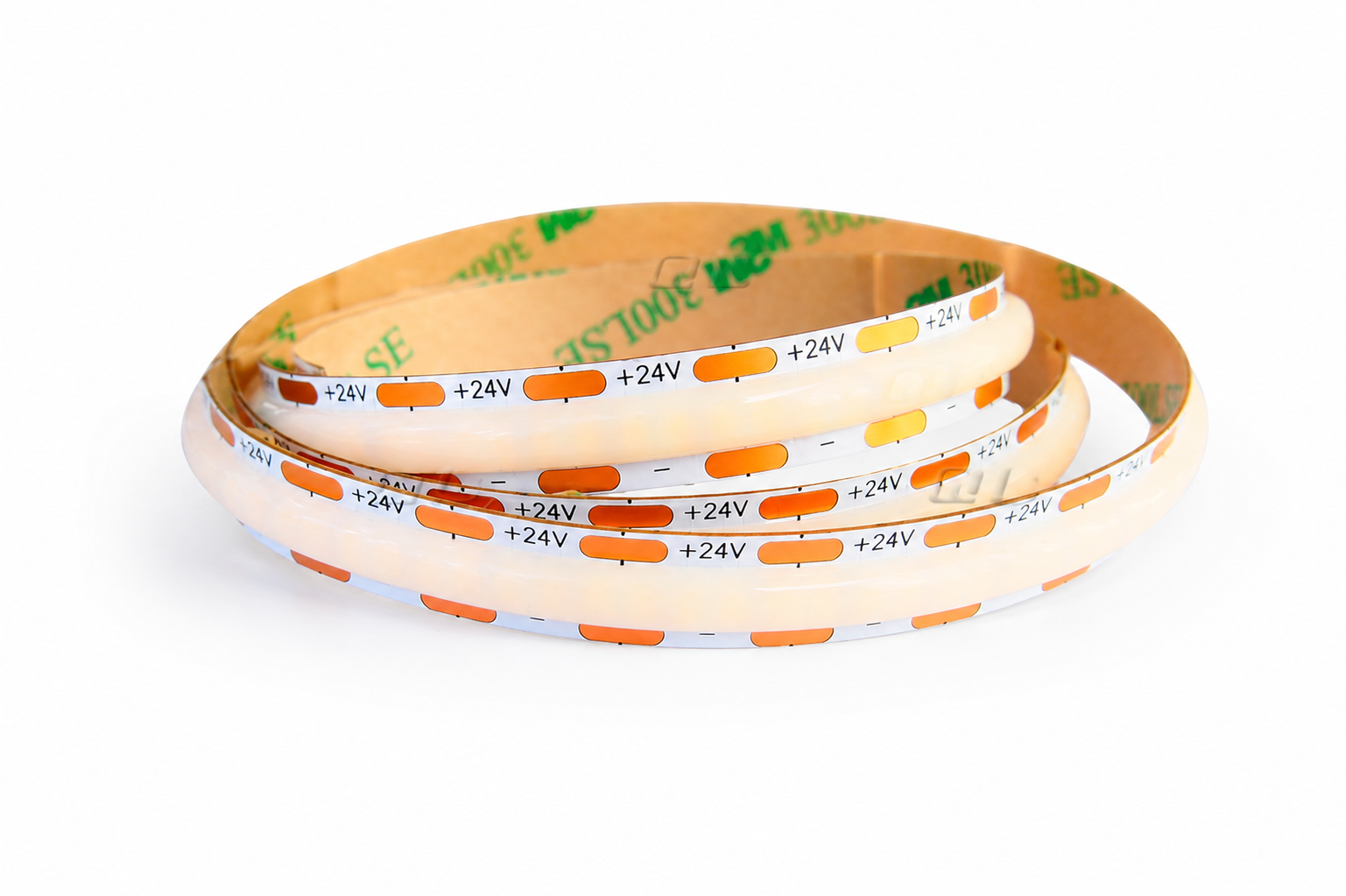

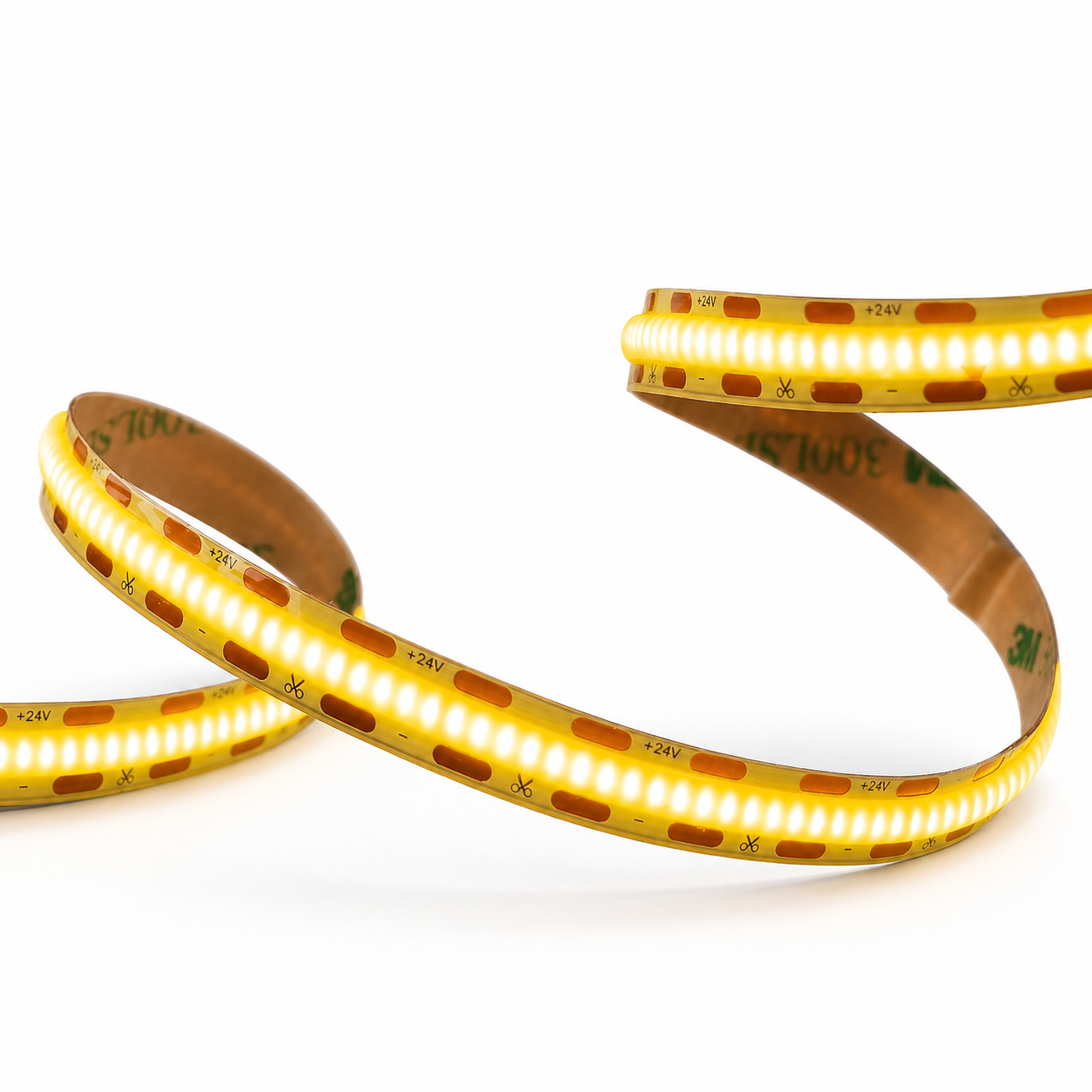

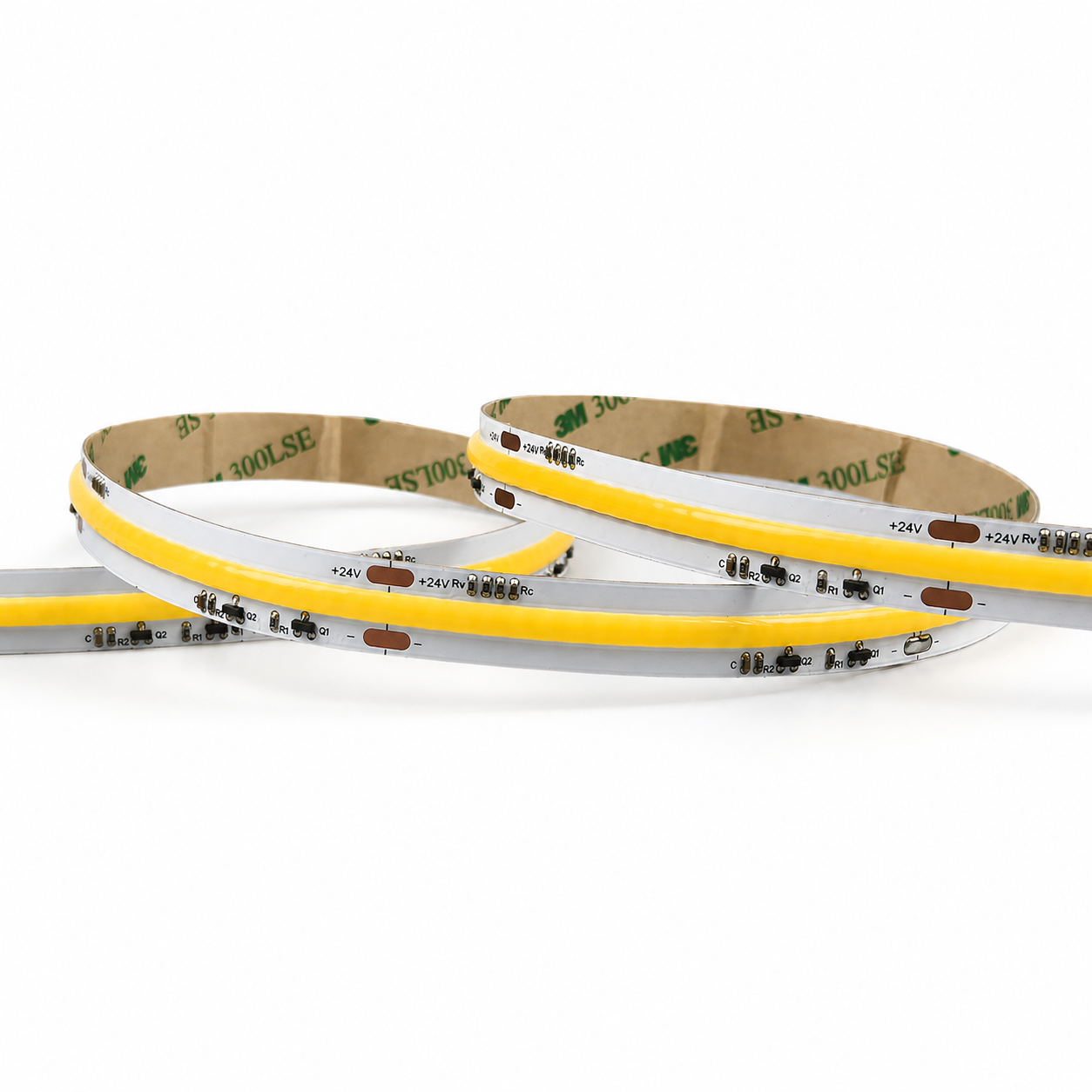

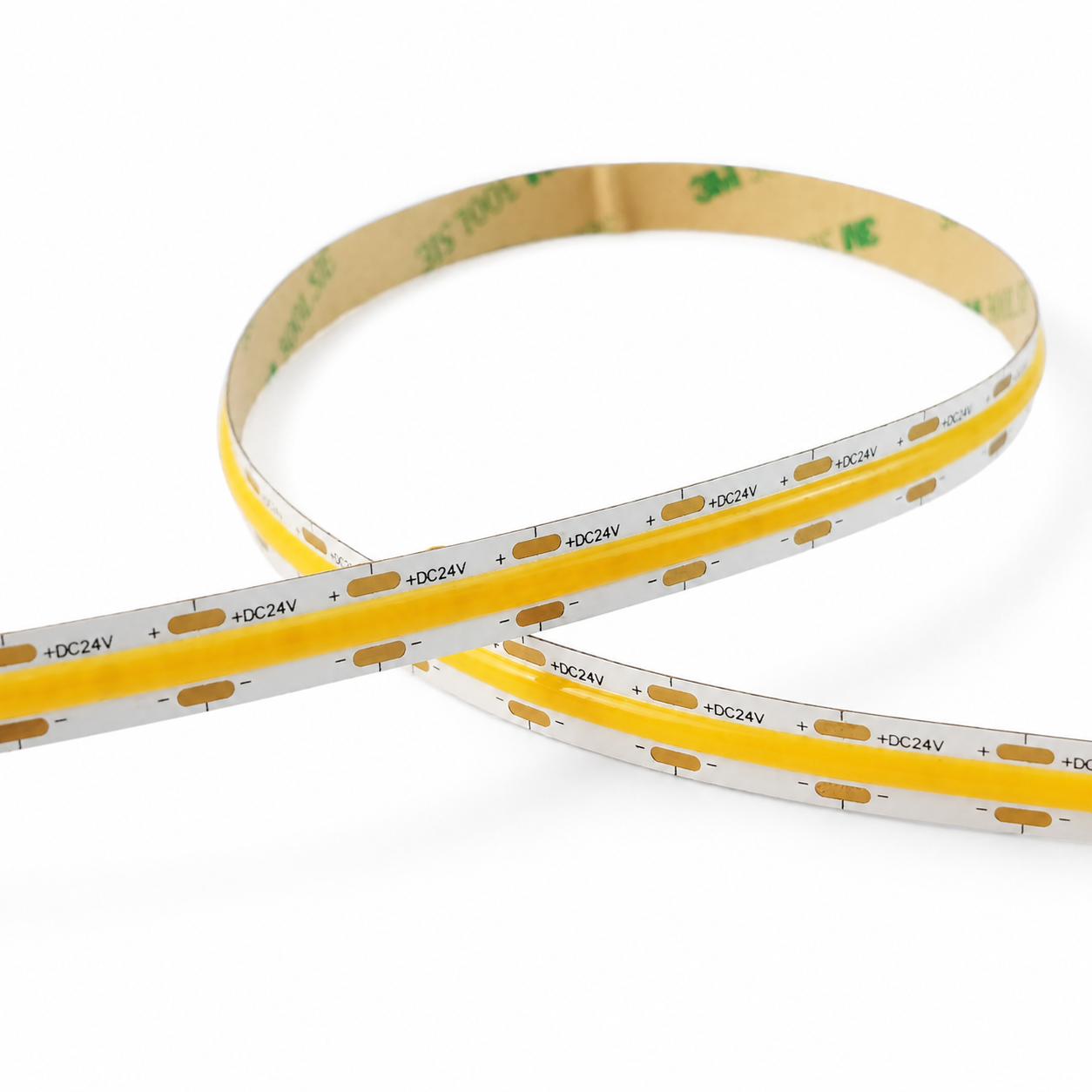

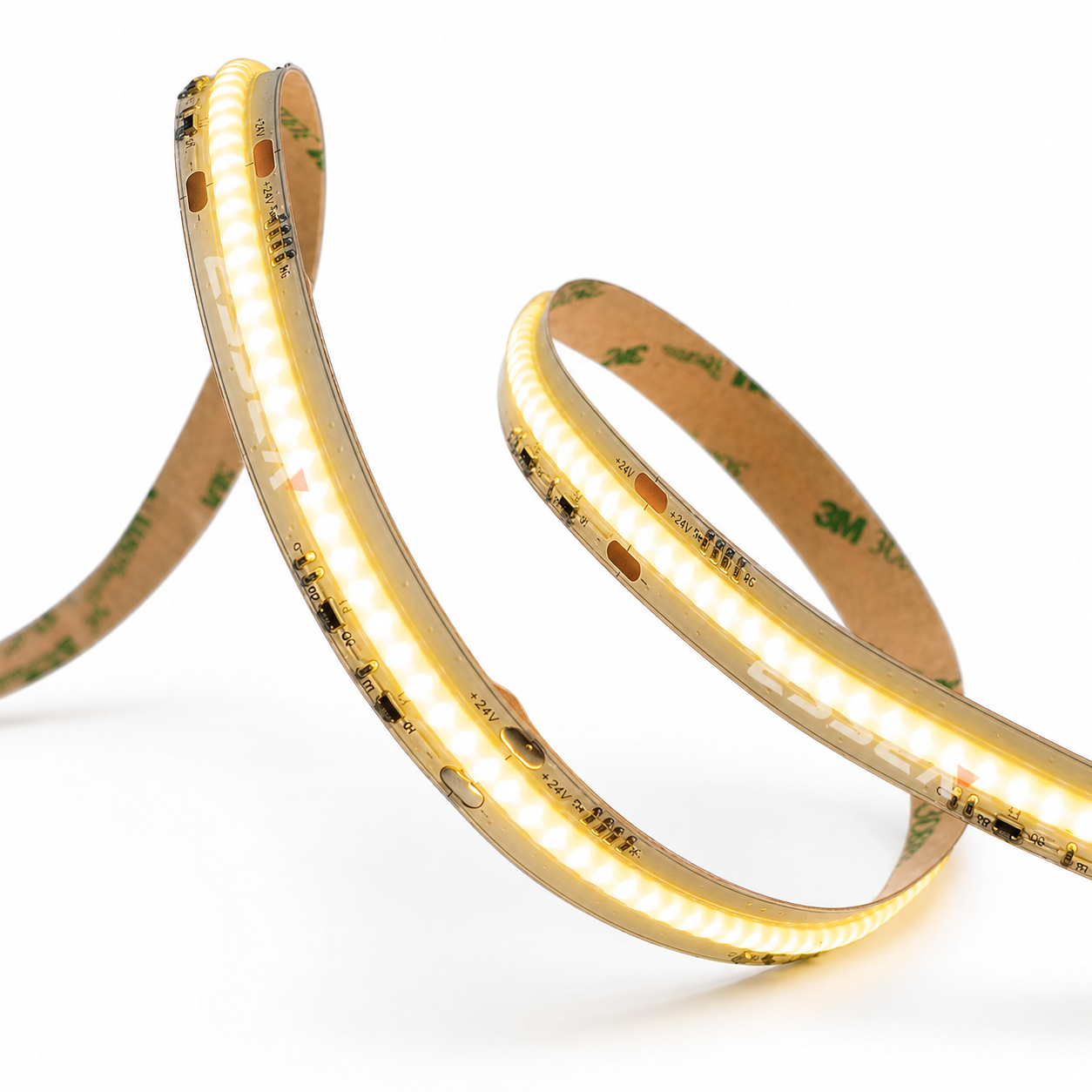

Product views for Free Cut COB Strip Light
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for Free Cut COB Strip Light
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
Custom millwork and one-off joinery
Free Cut COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Field-measured retrofit projects
Free Cut COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Display runs with awkward lengths
Free Cut COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Cabinet jobs with frequent cut adjustment
Free Cut COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Installer-led fit-out work
Free Cut COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects where fixed cut spacing creates waste
Free Cut COB Strip Light can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for Free Cut COB Strip Light
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| Light engine | Catalog-backed flexible COB strip | Aligned with the Wismart COB Series 2026 catalog so buyers can compare against a defined product family. |
| Voltage option | DC 12V / 24V free-cut options | Final driver and run-length plan should be confirmed before quotation closes. |
| Color / CCT direction | 3000K-6000K single-color white, CRI 90+ | Lock the exact white or color-control direction before sample preparation. |
| Output positioning | 400 and 528 led/m options with free-cut handling | Use this as the first buyer-facing output range before final model confirmation. |
| Structure direction | Free-cut COB strip for flexible on-site length control | The correct choice depends on installation width, cut interval, color-control need, and power planning. |
| Typical project fit | Installer-led projects, tight measurement runs, cabinetry, display, and retrofit work | Use the application description to guide the buyer into the right family before SKU expansion. |
Catalog Model Table
Wismart COB Series 2026 model options
These catalog-backed rows help buyers narrow the correct model before sample approval and quotation.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | Cutting Section |
|---|---|---|---|---|---|---|
| WS-COB-400-FC | DC 12V / 24V | 12W | 400 led/m | 3000K-6000K | 90+ | Free Cut |
| WS-COB-528-FC | DC 12V / 24V | 14W | 528 led/m | 3000K-6000K | 90+ | Free Cut |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Confirm the length-control problem
Use this series when fixed cut sections are the real project pain point, not just because the feature sounds safer.
Choose density after the install plan is clear
400 and 528 led/m should be matched to the visual expectation after length flexibility is confirmed.
Check field handling details
Installer skill, cable exit, and on-site finishing method affect whether free-cut delivery will actually help.
Set sample and accessory expectations
Samples should reflect the real install logic, including connectors, cable-out direction, and typical cut handling.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Confirm that free cut is truly required and that a normal cut interval will not already solve the job.
Choose between 400 and 528 led/m based on brightness target and budget tolerance.
Lock the run length and feed plan because free cut removes one limit but does not remove voltage-planning requirements.
Clarify who is cutting and installing on site so sample handling and accessory discussion stay practical.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest Free Cut COB Strip Light datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
When should buyers choose free-cut COB?
Use it when the installation repeatedly lands on awkward lengths and fixed cut sections would slow the installer down or waste material.
Does free cut replace all standard COB products?
No. It is a problem-solving option for length flexibility, not a blanket replacement for general stock or standard project supply.
Is free-cut COB mainly for installers?
Yes. It is especially useful when the project team is measuring and cutting around real site conditions.
What should be checked besides the free-cut feature?
Voltage option, brightness target, cable exit, and the actual installation geometry still matter before quoting or sampling.
Ready to quote Free Cut COB Strip Light?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
