SMD Strip Lights

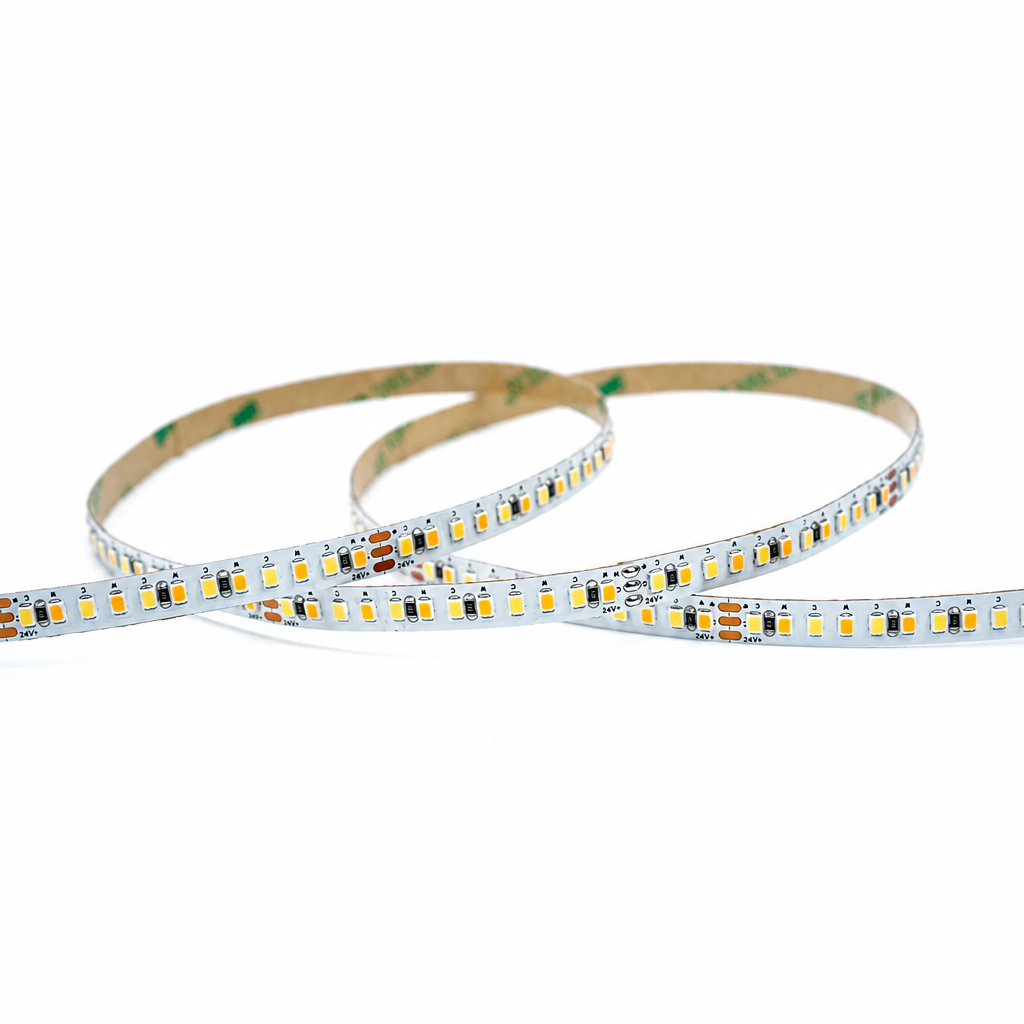

Tunable White / Dual Color SMD main product view
Tunable White / Dual Color SMD
Dual-color and CCT SMD series for warm-to-cool white control, furniture lighting, and scene-adjustable projects.
Where this series fits for buyer selection
Dual-color and CCT SMD series for warm-to-cool white control, furniture lighting, and scene-adjustable projects.
Use this family when warm-to-cool or paired-color control is the real requirement.
Confirmed supply option for representative catalog rows.
Density range supports mainstream and higher-density tunable white discussions.
The controller path matters as much as the strip row.
Series Gallery
Product views for Tunable White / Dual Color SMD
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for Tunable White / Dual Color SMD
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
Cabinet and furniture lighting with scene control
Tunable White / Dual Color SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Hospitality spaces needing warm-to-cool adjustment
Tunable White / Dual Color SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Residential mood-lighting programs
Tunable White / Dual Color SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Display shelves with tunable white requirement
Tunable White / Dual Color SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects comparing two-wire, three-wire, or controller logic
Tunable White / Dual Color SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Sample sets for warm and cool endpoint review
Tunable White / Dual Color SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for Tunable White / Dual Color SMD
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| LED package family | 2835 / 3535 dual-color package | The package family drives brightness, cost, and the first direction buyers compare. |
| Voltage path | 24V confirmed catalog option | Run length, controller choice, and power planning should be checked before sample approval. |
| Color / control route | White + warm white, with selected warm + blue variants | Use the first buyer conversation to lock whether the project is static white or scene control. |
| Output positioning | 120-192 LEDs/m tunable white and dual-color options | This keeps the page commercially useful before final wattage bins are published. |
| IP / protection structure | 8mm IP20 board option with die-cut, electroplated, and high-temperature variants | Protection method should follow the environment risk, not only a generic IP request. |
| Typical project route | Furniture, cabinet, hospitality, and scene-adjustable white-light projects | Use this line to move the buyer toward the correct family before model-level quoting. |
Catalog Model Table
Confirmed SMD catalog model options
This table shows the confirmed model options from the current SMD catalog list. Blank wattage remains marked To confirm instead of being invented.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | PCB / IP |
|---|---|---|---|---|---|---|
| WS-CCT2835-192-MD | 24V | 15W | 192 | White + Warm White | - | 8mm PCB / IP20 |
| WS-CCT2835-192-EP | 24V | 15W | 192 | White + Warm / Warm + Blue | - | 8mm PCB / IP20 |
| WS-CCT2835-120-HT | 24V | 12W | 120 | White + Warm / Warm + Blue | - | 8mm PCB / IP20 |
| WS-CCT2835-180-HT | 24V | 15W | 180 | White + Warm / Warm + Blue | - | 8mm PCB / IP20 |
| WS-CCT3535-120-FC | 24V | 12W | 120 | White + Warm White | 90 | 8mm PCB / IP20 |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Confirm LED package and cost target
Lock whether the buyer is comparing 2835, 5050, RGB, or protected strip before discussing only unit price.
Confirm power, color, and control
Voltage, wattage, white path, or RGB control method should be aligned before the sample pack is assembled.
Confirm adhesive and protection route
Outdoor, humid-area, or profile-mounted projects need the protection and fixing method decided early.
Confirm reel, carton, and OEM details
Mixed SKU packing, barcode, reel length, and private-label requests should be closed before production slotting.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Confirm the color direction before model selection: white + warm white, or a special paired-color direction.
Align controller, dimming, wiring, and driver path before presenting the sample as final.
Confirm whether the buyer needs tunable white effect or only a fixed CCT white strip.
For furniture or cabinet projects, check PCB width and channel fit before quoting.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest Tunable White / Dual Color SMD datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
Is this the same as CCT control?
In buyer language it often is, but the exact wiring and color pair still need to match the selected model.
Why is controller confirmation early?
Dual-color success depends on control logic, wiring, and dimming behavior, not only the strip itself.
When should buyers avoid this series?
Avoid it when the project only needs one stable CCT, because standard 2835 or high-CRI SMD may be simpler.
What should be sent for quotation?
Target CCT range, control method, voltage, LEDs/m, PCB width, quantity, and installation scene.
Ready to quote Tunable White / Dual Color SMD?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
