SMD Strip Lights

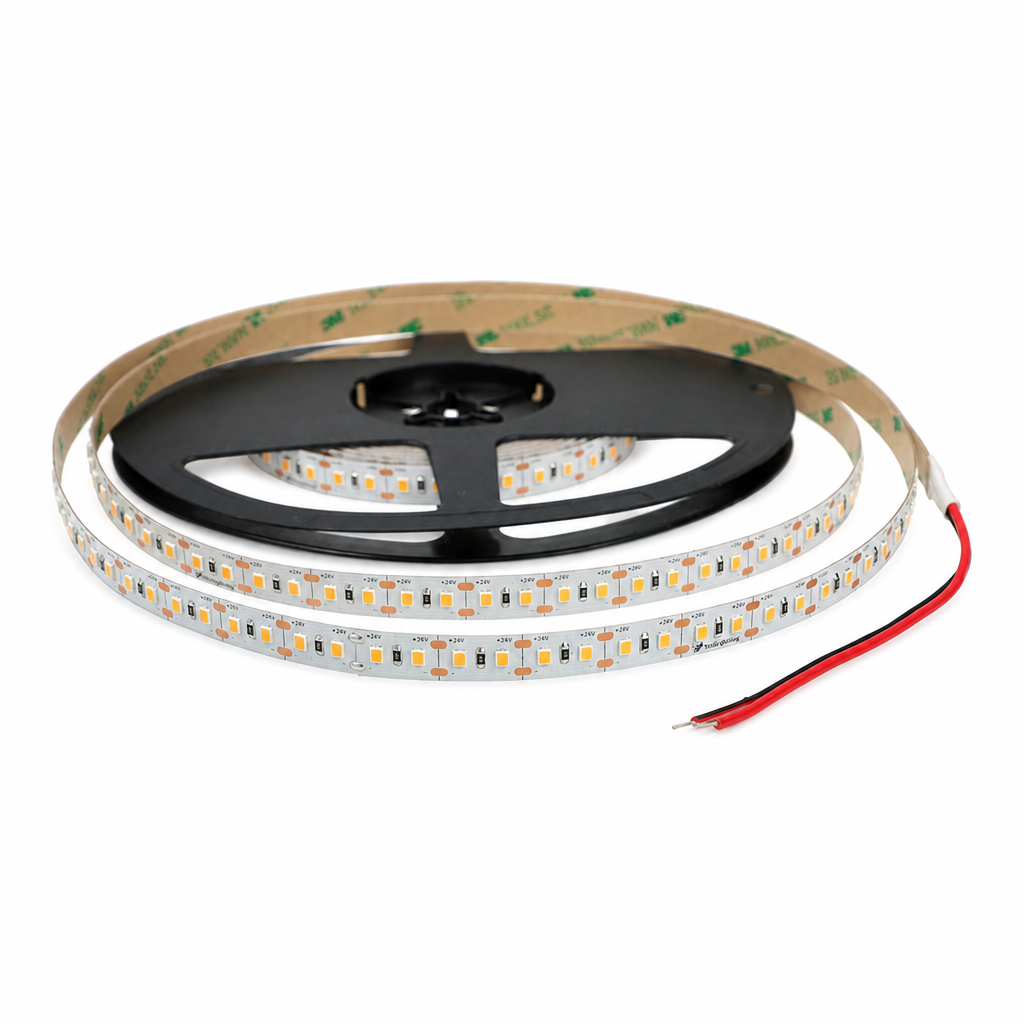

High CRI / Full Spectrum SMD main product view
High CRI / Full Spectrum SMD
CRI 98 full-spectrum 2835 series for buyers prioritizing color rendering in premium white-light scenes.
Where this series fits for buyer selection
CRI 98 full-spectrum 2835 series for buyers prioritizing color rendering in premium white-light scenes.
Primary reason to choose this family over general white-light SMD.
Confirmed voltage option across the representative rows.
Board width options cover compact through higher-density builds.
Position this as a color-quality series, not just another commodity strip.
Series Gallery
Product views for High CRI / Full Spectrum SMD
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for High CRI / Full Spectrum SMD
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
Retail display lighting where color fidelity matters
High CRI / Full Spectrum SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Premium cabinetry and shelf lighting
High CRI / Full Spectrum SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Museum-style and product-display references
High CRI / Full Spectrum SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Interior projects comparing CRI before cost
High CRI / Full Spectrum SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Residential scenes needing cleaner white quality
High CRI / Full Spectrum SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Sample packs for high-CRI buyer approval
High CRI / Full Spectrum SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for High CRI / Full Spectrum SMD
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| LED package family | 2835 full-spectrum high-CRI package | The package family drives brightness, cost, and the first direction buyers compare. |
| Voltage path | 24V confirmed catalog option | Run length, controller choice, and power planning should be checked before sample approval. |
| Color / control route | White / warm white / neutral white with CRI 98 | Use the first buyer conversation to lock whether the project is static white or scene control. |
| Output positioning | 120-240 LEDs/m full-spectrum option | This keeps the page commercially useful before final wattage bins are published. |
| IP / protection structure | 7.1mm, 8mm, and 10mm IP20 board options | Protection method should follow the environment risk, not only a generic IP request. |
| Typical project route | Premium interior scenes where color rendering is the main buyer requirement | Use this line to move the buyer toward the correct family before model-level quoting. |
Catalog Model Table
Confirmed SMD catalog model options
This table shows the confirmed model options from the current SMD catalog list. Blank wattage remains marked To confirm instead of being invented.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | PCB / IP |
|---|---|---|---|---|---|---|
| WS-FS2835-120-7P1 | 24V | 11W | 120 | White / Warm / Neutral | 98 | 7.1mm PCB / IP20 |
| WS-FS2835-120-8MM | 24V | 11W | 120 | White / Warm / Neutral | 98 | 8mm PCB / IP20 |
| WS-FS2835-180-8MM | 24V | 16W | 180 | White / Warm / Neutral | 98 | 8mm PCB / IP20 |
| WS-FS2835-240D-10MM | 24V | 19W | 240 | White / Warm / Neutral | 98 | 10mm PCB / IP20 |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Confirm LED package and cost target
Lock whether the buyer is comparing 2835, 5050, RGB, or protected strip before discussing only unit price.
Confirm power, color, and control
Voltage, wattage, white path, or RGB control method should be aligned before the sample pack is assembled.
Confirm adhesive and protection route
Outdoor, humid-area, or profile-mounted projects need the protection and fixing method decided early.
Confirm reel, carton, and OEM details
Mixed SKU packing, barcode, reel length, and private-label requests should be closed before production slotting.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Confirm that CRI or full-spectrum performance is a real buying requirement, not a generic checkbox.
Lock CCT, CRI target, LED density, PCB width, and sample evaluation scene early.
Avoid mixing this series with standard 2835 if the buyer is judging by color rendering.
For high-density rows, confirm heat path, channel, and run length before quotation.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest High CRI / Full Spectrum SMD datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
Who should choose high-CRI SMD?
Buyers who care about color fidelity in retail, display, cabinetry, or premium interior work should start here.
How is this different from standard 2835?
The main distinction is color-rendering positioning and CRI 98 confirmed rows, not just LED density.
Can this replace COB?
Only when the buyer wants SMD structure with better color rendering. If the top priority is dotless appearance, COB remains the cleaner option.
What should be in the inquiry?
CCT, CRI target, voltage, density, PCB width, application scene, and sample quantity should be included.
Ready to quote High CRI / Full Spectrum SMD?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
