SMD Strip Lights
Special Appendix / Free Cut SMD main product view
Special Appendix / Free Cut SMD
3535 and 2835 free-cut SMD series for projects that need finer cut handling and compact board options.
Where this series fits for buyer selection
3535 and 2835 free-cut SMD series for projects that need finer cut handling and compact board options.
Use when installers need finer length handling than standard cut sections.
The appendix covers both package directions in confirmed rows.
Representative options stay on a 24V path.
Compact board options support tight profile work.

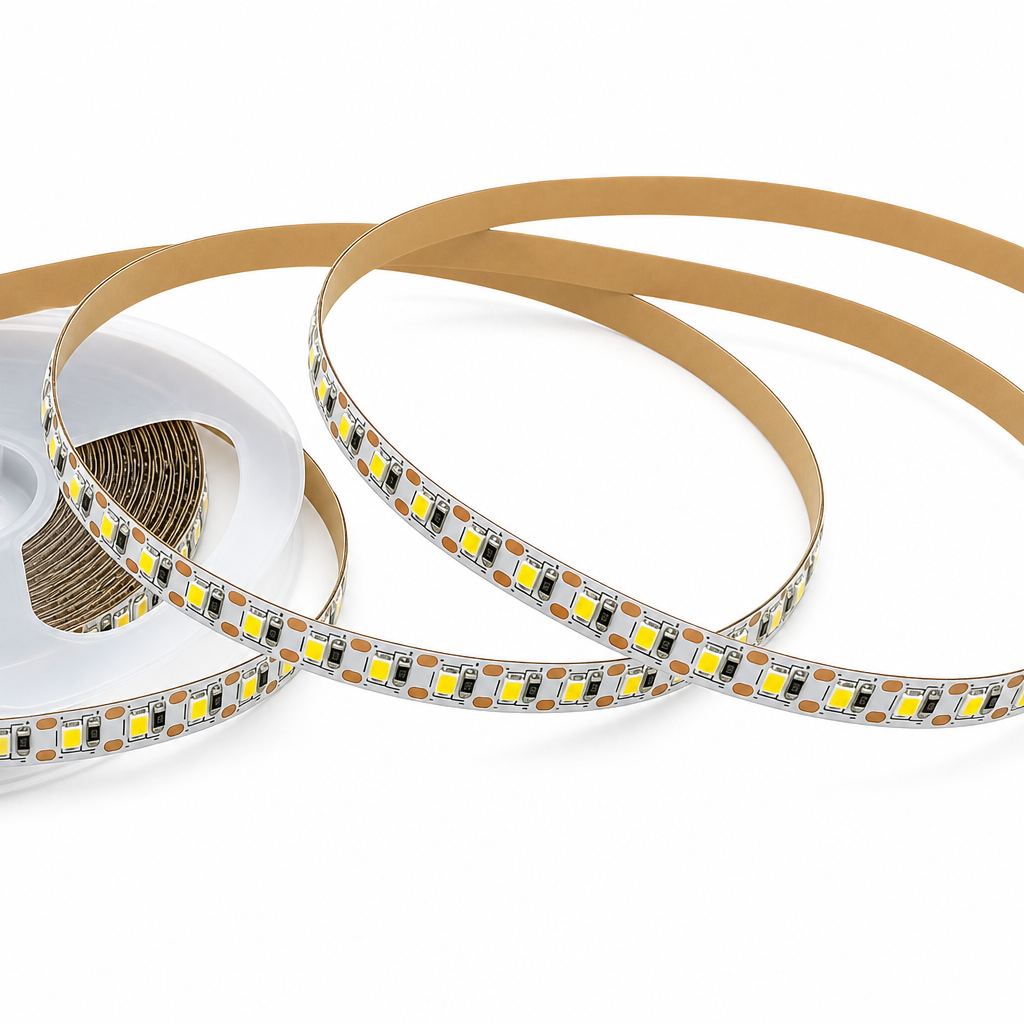

Series Gallery
Product views for Special Appendix / Free Cut SMD
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for Special Appendix / Free Cut SMD
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
On-site trimming-heavy installations
Special Appendix / Free Cut SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Cabinet and shelf projects with variable lengths
Special Appendix / Free Cut SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Compact channel projects
Special Appendix / Free Cut SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects needing fine length adjustment
Special Appendix / Free Cut SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Sample packs for installer approval
Special Appendix / Free Cut SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Special appendix discussions after standard rows do not fit
Special Appendix / Free Cut SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for Special Appendix / Free Cut SMD
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| LED package family | 3535 / 2835 free-cut SMD series | The package family drives brightness, cost, and the first direction buyers compare. |
| Voltage path | 24V confirmed catalog option | Run length, controller choice, and power planning should be checked before sample approval. |
| Color / control route | White / warm white / neutral white with selected 2700K / 3500K paths | Use the first buyer conversation to lock whether the project is static white or scene control. |
| Output positioning | 120-180 LEDs/m free-cut option | This keeps the page commercially useful before final wattage bins are published. |
| IP / protection structure | 5mm and 8mm IP20 board options | Protection method should follow the environment risk, not only a generic IP request. |
| Typical project route | Projects that need finer cut handling and compact board options | Use this line to move the buyer toward the correct family before model-level quoting. |
Catalog Model Table
Confirmed SMD catalog model options
This table shows the confirmed model options from the current SMD catalog list. Blank wattage remains marked To confirm instead of being invented.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | PCB / IP |
|---|---|---|---|---|---|---|
| WS-FC3535-FS-120 | 24V | 11W | 120 | White / Warm / Neutral / 2700K / 3500K | 98 | 8mm PCB / IP20 |
| WS-FC3535-FS-180 | 24V | 15W | 180 | White / Warm / Neutral / 2700K / 3500K | 98 | 8mm PCB / IP20 |
| WS-FC3535-120-DL | 24V | 11W | 120 | White / Warm / Neutral | 80 | 8mm PCB / IP20 |
| WS-FC2835-120-5MM | 24V | 11W | 120 | White / Warm / Neutral | 80 | 5mm PCB / IP20 |
| WS-FC2835-120-8MM | 24V | 11W | 120 | White / Warm / Neutral | 80 | 8mm PCB / IP20 |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Confirm LED package and cost target
Lock whether the buyer is comparing 2835, 5050, RGB, or protected strip before discussing only unit price.
Confirm power, color, and control
Voltage, wattage, white path, or RGB control method should be aligned before the sample pack is assembled.
Confirm adhesive and protection route
Outdoor, humid-area, or profile-mounted projects need the protection and fixing method decided early.
Confirm reel, carton, and OEM details
Mixed SKU packing, barcode, reel length, and private-label requests should be closed before production slotting.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Confirm whether fine cut handling is truly required before moving away from standard SMD rows.
Lock board width, package type, voltage, CCT, and CRI expectation before sample planning.
For compact profiles, check 5mm versus 8mm width before discussing only brightness.
Keep this as a special-selection page rather than the first path for every general SMD inquiry.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest Special Appendix / Free Cut SMD datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
When should buyers choose free-cut SMD?
Use it when installation lengths vary and standard cut intervals create waste or fit problems.
Is this a general SMD replacement?
No. It is a special appendix series for projects where cut flexibility is the main requirement.
What should be confirmed before sampling?
Board width, package type, CCT, CRI, expected cut behavior, and installation profile.
Can this be used in compact channels?
Yes, the confirmed rows include 5mm and 8mm board directions, but the actual channel should still be measured.
Ready to quote Special Appendix / Free Cut SMD?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
