SMD Strip Lights
Engineering / High Temperature SMD main product view
Engineering / High Temperature SMD
Narrow-board, cup-board, electroplated-board, and higher-temperature SMD series for constrained project builds.
Where this series fits for buyer selection
Narrow-board, cup-board, electroplated-board, and higher-temperature SMD series for constrained project builds.
Board width is the first filter for compact or constrained profiles.
Voltage path follows profile length and heat planning.
Density range covers mainstream through high-density engineering variants.
This is a constraint-led series, not a generic product page.

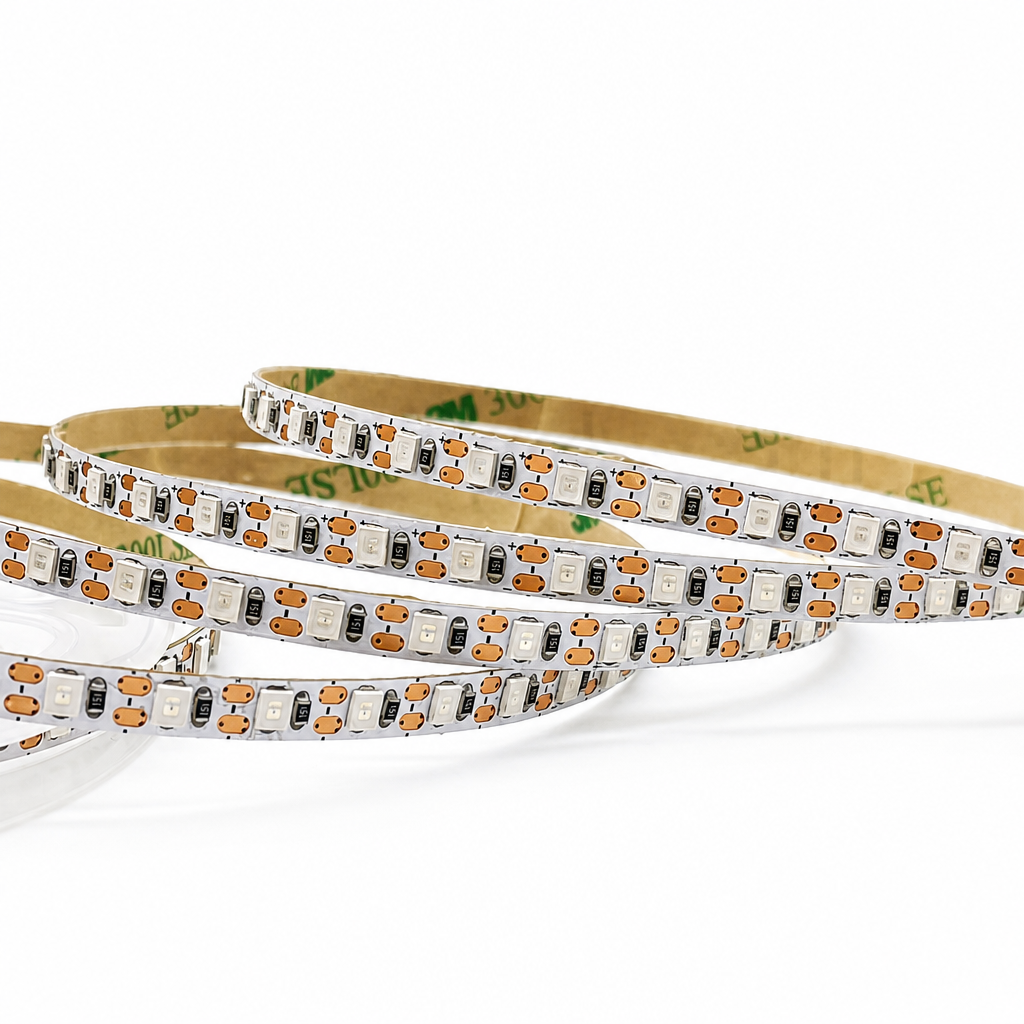

Series Gallery
Product views for Engineering / High Temperature SMD
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for Engineering / High Temperature SMD
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
Compact aluminum channels
Engineering / High Temperature SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Narrow board installation projects
Engineering / High Temperature SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Cup-board and special board projects
Engineering / High Temperature SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Higher-temperature board discussions
Engineering / High Temperature SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Engineering sampling for constrained profiles
Engineering / High Temperature SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects where a standard board width does not fit
Engineering / High Temperature SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for Engineering / High Temperature SMD
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| LED package family | Engineering 2835 board variants | The package family drives brightness, cost, and the first direction buyers compare. |
| Voltage path | 12V / 24V confirmed catalog options | Run length, controller choice, and power planning should be checked before sample approval. |
| Color / control route | White / warm white / neutral white | Use the first buyer conversation to lock whether the project is static white or scene control. |
| Output positioning | 120-240 LEDs/m narrow-board, cup-board, and electroplated options | This keeps the page commercially useful before final wattage bins are published. |
| IP / protection structure | 3mm, 5mm, 8mm, and 10mm IP20 board options | Protection method should follow the environment risk, not only a generic IP request. |
| Typical project route | Compact channels, higher-temperature boards, and engineering-constrained builds | Use this line to move the buyer toward the correct family before model-level quoting. |
Catalog Model Table
Confirmed SMD catalog model options
This table shows the confirmed model options from the current SMD catalog list. Blank wattage remains marked To confirm instead of being invented.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | PCB / IP |
|---|---|---|---|---|---|---|
| WS-ENG2835-120-CUP | 12V/24V | 11W | 120 | White / Warm / Neutral | - | 8mm PCB / IP20 |
| WS-ENG2835-120-5MM | 12V/24V | 11W | 120 | White / Warm / Neutral | - | 5mm PCB / IP20 |
| WS-ENG2835-180-3MM | 12V/24V | 15W | 180 | White / Warm / Neutral | - | 3mm PCB / IP20 |
| WS-ENG2835-180-5MM | 12V/24V | 15W | 180 | White / Warm / Neutral | - | 5mm PCB / IP20 |
| WS-ENG2835-180-EP | 24V | 15W | 180 | White / Warm / Neutral | - | 8mm PCB / IP20 |
| WS-ENG2835-240-EP | 24V | 18W | 240 | White / Warm / Neutral | - | 10mm PCB / IP20 |
| WS-ENG2835-240D-15MM | 24V | 18W | 240 | White / Warm / Neutral | - | 15mm PCB / IP20 |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Confirm LED package and cost target
Lock whether the buyer is comparing 2835, 5050, RGB, or protected strip before discussing only unit price.
Confirm power, color, and control
Voltage, wattage, white path, or RGB control method should be aligned before the sample pack is assembled.
Confirm adhesive and protection route
Outdoor, humid-area, or profile-mounted projects need the protection and fixing method decided early.
Confirm reel, carton, and OEM details
Mixed SKU packing, barcode, reel length, and private-label requests should be closed before production slotting.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Start from the mechanical constraint: board width, profile, bend tolerance, or installation heat condition.
Confirm whether cup-board, electroplated-board, high-temperature, or narrow-board direction is required.
Do not sell this as a generic replacement for standard 2835 unless the constraint exists.
Ask for profile drawings or measured channel width before final quotation when possible.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest Engineering / High Temperature SMD datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
Who should use this page?
Buyers with board-width, profile, heat, or engineering constraints should start here instead of standard SMD.
Why are there multiple board widths?
The family exists because width and board structure can decide fit before brightness does.
Is this a higher-performance page?
Not necessarily. It is a project-fit page for constrained builds.
What should be sent first?
Profile width, installation drawing, voltage, density target, CCT, and quantity should be included.
Ready to quote Engineering / High Temperature SMD?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
