SMD Strip Lights
Addressable / Programmable SMD main product view
Addressable / Programmable SMD
5V, 12V, and 24V addressable SMD series for programmable RGB and RGBW scene-control projects.
Where this series fits for buyer selection
5V, 12V, and 24V addressable SMD series for programmable RGB and RGBW scene-control projects.
Use when each segment or pixel behavior matters, not for basic color changes.
Voltage option changes the controller and power-feed plan.
The matrix includes both RGB and RGBW programmable paths.
IC, controller, signal, and power plan must be treated as one system.
Series Gallery

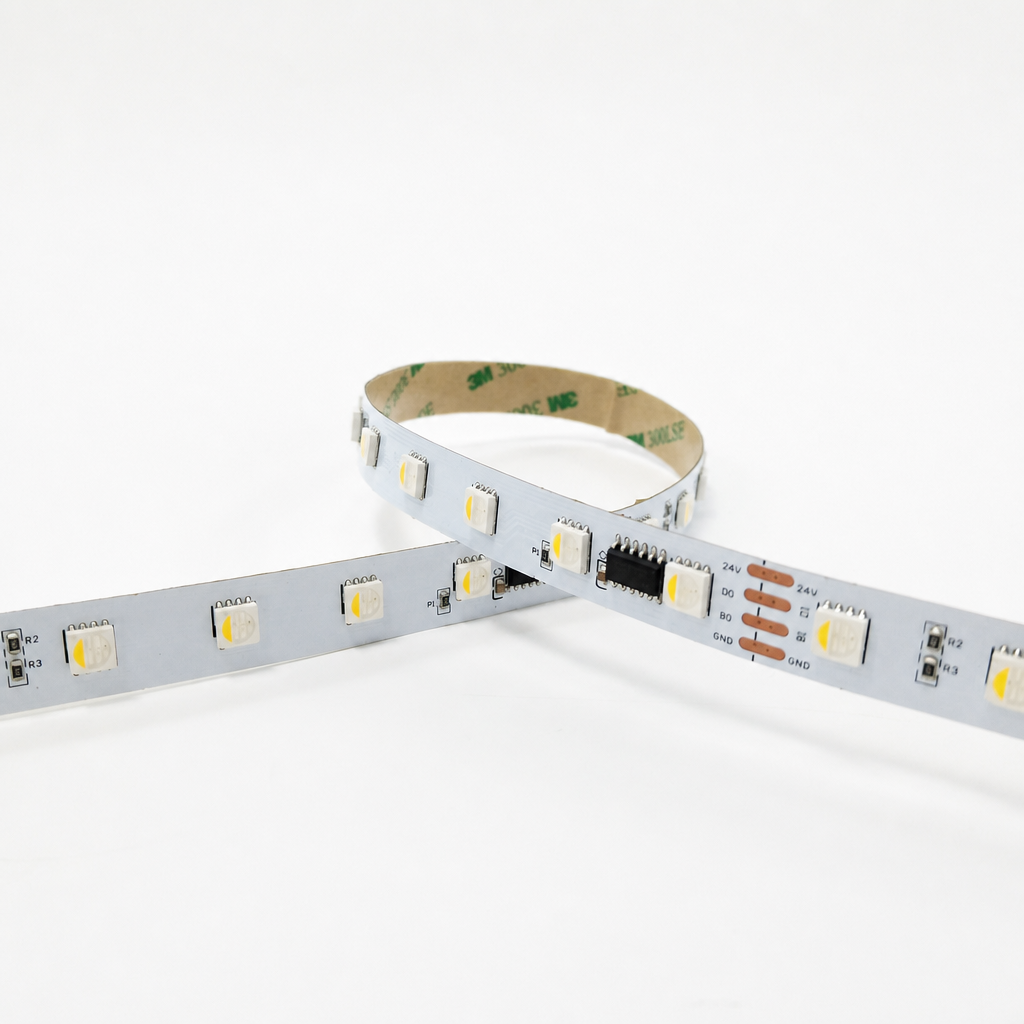

Product views for Addressable / Programmable SMD
Use this gallery to review product form, board width, and visual presentation before moving to model-level discussion.
Application Match
Typical use cases for Addressable / Programmable SMD
Use these application points to check whether the series fits the buyer's project before sample or quotation follow-up.
Programmable signage effects
Addressable / Programmable SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Entertainment and event-lighting sequences
Addressable / Programmable SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Interactive display outlines
Addressable / Programmable SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Dynamic architectural accents
Addressable / Programmable SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Retail scenes with moving color logic
Addressable / Programmable SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects needing RGBW programmable white support
Addressable / Programmable SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for Addressable / Programmable SMD
Use this table to screen voltage, color direction, structure, and project fit before narrowing the final model.
| Item | Quote direction | Commercial note |
|---|---|---|
| LED package family | 5050 addressable RGB / RGBW package | The package family drives brightness, cost, and the first direction buyers compare. |
| Voltage path | 5V / 12V / 24V confirmed catalog options | Run length, controller choice, and power planning should be checked before sample approval. |
| Color / control route | Built-in or external IC programmable RGB and RGBW paths | Use the first buyer conversation to lock whether the project is static white or scene control. |
| Output positioning | 30-60 LEDs/m addressable option | This keeps the page commercially useful before final wattage bins are published. |
| IP / protection structure | 10mm IP20 board option | Protection method should follow the environment risk, not only a generic IP request. |
| Typical project route | Programmable scenes, signage effects, and dynamic architectural accents | Use this line to move the buyer toward the correct family before model-level quoting. |
Catalog Model Table
Confirmed SMD catalog model options
This table shows the confirmed model options from the current SMD catalog list. Blank wattage remains marked To confirm instead of being invented.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | PCB / IP |
|---|---|---|---|---|---|---|
| WS-ADDR5050-5V-30 | 5V | 4W | 30 | Built-in RGB | - | 10mm PCB / IP20 |
| WS-ADDR5050-5V-60 | 5V | 7W | 60 | Addressable RGB | - | 10mm PCB / IP20 |
| WS-ADDR5050-12V-2811 | 12V | 14W | 60 | Addressable RGB | - | 10mm PCB / IP20 |
| WS-ADDR5050-24V-2811 | 24V | 14W | 60 | Addressable RGB | - | 10mm PCB / IP20 |
| WS-ADDR5050-12V-16703 | 12V | 14W | 60 | Addressable RGB | - | 10mm PCB / IP20 |
| WS-ADDRRGBW5050-24V | 24V | 19W | 60 | RGBW | - | 10mm PCB / IP20 |
Order Preparation
What should be aligned before sample or production
Use these checkpoints to align samples, drawings, packaging, and production details before the order moves forward.
Confirm LED package and cost target
Lock whether the buyer is comparing 2835, 5050, RGB, or protected strip before discussing only unit price.
Confirm power, color, and control
Voltage, wattage, white path, or RGB control method should be aligned before the sample pack is assembled.
Confirm adhesive and protection route
Outdoor, humid-area, or profile-mounted projects need the protection and fixing method decided early.
Confirm reel, carton, and OEM details
Mixed SKU packing, barcode, reel length, and private-label requests should be closed before production slotting.
Sourcing Checklist
What should be confirmed before quoting this series
Use this checklist to confirm the commercial and technical points buyers normally settle before sample or quotation.
Confirm the IC type, voltage, controller, LED density, and required animation logic before sample selection.
Do not quote it like a basic RGB strip; controller and signal constraints are part of the product fit.
For RGBW options, make sure the dedicated white channel is intentional and supported by the control plan.
Ask for run length and installation layout early because power injection may decide the right model.
Sales Support Requests
Common request points before sample and quotation
Use these request blocks to ask for datasheet review, drawing confirmation, sample planning, and OEM packing support.
Datasheet & parameter sheet
Request the latest Addressable / Programmable SMD datasheet with the main electrical and structural options for buyer review.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Align sample quantity, finish expectations, and target shipment window before formal quotation closes.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Questions buyers still ask at the series level
These FAQs focus on the questions buyers normally resolve before they move from category screening to model selection.
How is addressable SMD different from RGB SMD?
RGB changes the whole strip or zone together, while addressable SMD can control segments or pixels with IC logic.
Why does voltage matter more here?
Voltage changes controller choice, power injection, run length, and installation handling more visibly than on simple static strip.
When should buyers choose RGBW addressable?
Choose RGBW when programmable color is needed together with a more usable dedicated white channel.
What blocks fast quotation?
Missing IC, controller, voltage, length, animation, or wiring details usually blocks accurate sampling and pricing.
Ready to quote Addressable / Programmable SMD?
Send the voltage option, target output, color direction, quantity, and application so the team can align the correct model faster.
