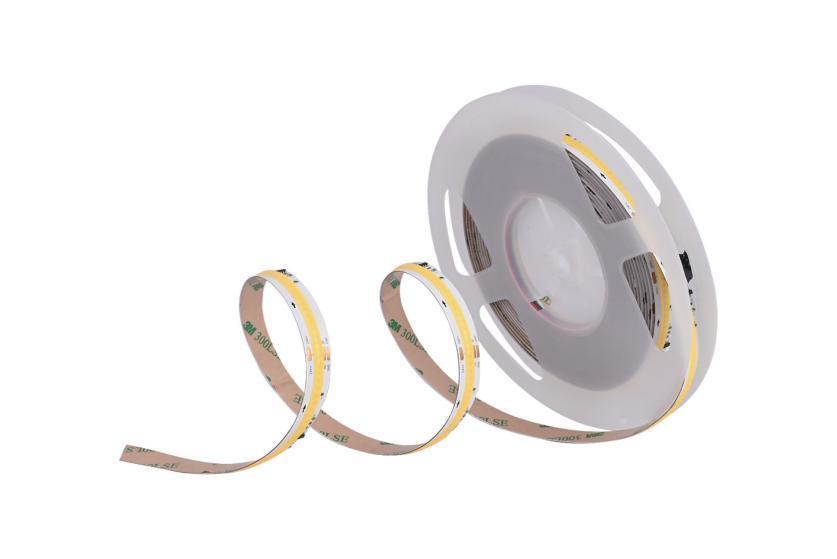

Single / Dual Color SPI COB LED Strips
- PCB widths
- 10 mm
- Voltage options
- 24 V
Specifications
2 configurations
| LED quantity / Strip type | Power | PCB width | Voltage → Cut length | More specifications | Select for quote |
|---|---|---|---|---|---|
| 360 LEDSingle color SPIWS-COB-07-008 | 12 W/m ±10% | 10 mm | 24 V → 83 mm |
More specifications
| Single / Dual Color SPI COB LED Strips; Model WS-COB-07-008; Single color SPI; 360 LED; 12 W/m ±10%; PCB options 10 mm; Supply / cut options: 24 V → 83 mm cut; Colors / CCT: 3000K ±150K / 4000K ±150K / 6400K ±300K; IC: 2811; Roll length: 5 m
|
| 576 LEDDual color SPIWS-COB-07-001 | 19 W/m ±10% | 10 mm | 24 V → 41.66 mm |
More specifications
| Single / Dual Color SPI COB LED Strips; Model WS-COB-07-001; Dual color SPI; 576 LED; 19 W/m ±10%; PCB options 10 mm; Supply / cut options: 24 V → 41.66 mm cut; Colors / CCT: CCT (2700K ±150K / 6500K ±250K); IC: 2811; Roll length: 5 m
|
No matching options. Reset filters to try again.
Downloads
No document for this option.
