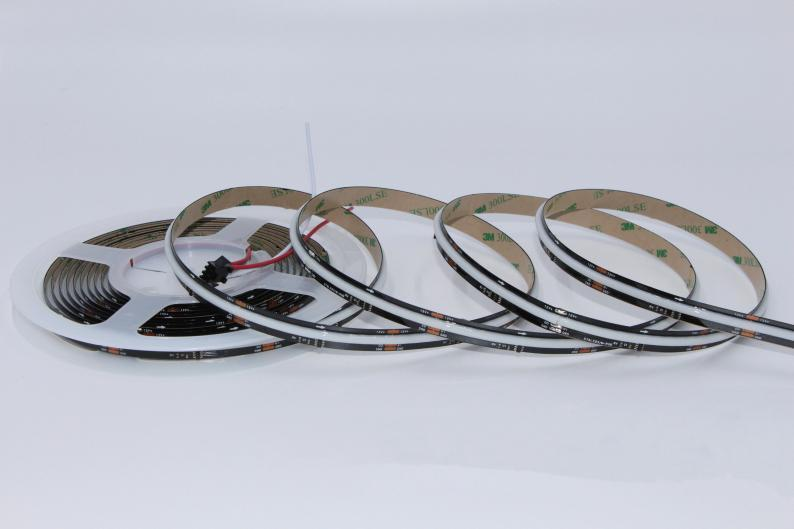

RGB SPI COB LED Strips
- PCB widths
- 5 / 10 / 12 mm
- Voltage options
- 5 V / 12 V / 24 V
Specifications
12 configurations
| LED quantity / Strip type | Power | PCB width | Voltage → Cut length | More specifications | Select for quote |
|---|---|---|---|---|---|
| 160 LEDRGB SPIWS-COB-07-006 | 14 W/m ±10% | 5 mm | 5 V → 12.5 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-006; RGB SPI; 160 LED; 14 W/m ±10%; PCB options 5 mm; Supply / cut options: 5 V → 12.5 mm cut; Colors / CCT: RGB; IC: 1838 (built-in); Roll length: 5 m
|
| 360 LEDRGB SPIWS-COB-07-004 | 10 W/m ±10% | 10 mm | 24 V → 100 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-004; RGB SPI; 360 LED; 10 W/m ±10%; PCB options 10 mm; Supply / cut options: 24 V → 100 mm cut; Colors / CCT: RGB; IC: JD36703A; Roll length: 5 m
|
| 432 LEDRGB SPIWS-COB-07-004 | 8 W/m (all channels on) | 10 mm | 12 V → 62.5 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-004; RGB SPI; 432 LED; 8 W/m (all channels on); PCB options 10 mm; Supply / cut options: 12 V → 62.5 mm cut; Colors / CCT: RGB; IC: WS2811; Roll length: 5 m
|
| 420 LEDRGB SPIWS-COB-07-004 | 10 W/m (all channels on) | 10 mm | 24 V → 100 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-004; RGB SPI; 420 LED; 10 W/m (all channels on); PCB options 10 mm; Supply / cut options: 24 V → 100 mm cut; Colors / CCT: RGB; IC: WS2811; Roll length: 5 m
|
| 576 LEDRGB SPIWS-COB-07-004 | 10 W/m ±10% | 10 mm | 12 V → 62.5 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-004; RGB SPI; 576 LED; 10 W/m ±10%; PCB options 10 mm; Supply / cut options: 12 V → 62.5 mm cut; Colors / CCT: RGB; IC: 2811; Roll length: 5 m
|
| 576 LEDRGB SPIWS-COB-07-004 | 18 W/m ±10% | 10 mm | 24 V → 62.5 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-004; RGB SPI; 576 LED; 18 W/m ±10%; PCB options 10 mm; Supply / cut options: 24 V → 62.5 mm cut; Colors / CCT: RGB; IC: 2811; Roll length: 5 m
|
| 720 LEDRGB SPIWS-COB-07-004 | 10 W/m ±10% | 10 mm | 12 V → 50 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-004; RGB SPI; 720 LED; 10 W/m ±10%; PCB options 10 mm; Supply / cut options: 12 V → 50 mm cut; Colors / CCT: RGB; IC: 2811; Roll length: 5 m
|
| 720 LEDRGB SPIWS-COB-07-004 | 19 W/m ±10% | 10 mm | 24 V → 50 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-004; RGB SPI; 720 LED; 19 W/m ±10%; PCB options 10 mm; Supply / cut options: 24 V → 50 mm cut; Colors / CCT: RGB; IC: 2811; Roll length: 5 m
|
| 720 LEDRGB SPIWS-COB-07-005 | 12 W/m ±10% | 12 mm | 12 V → 50 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-005; RGB SPI; 720 LED; 12 W/m ±10%; PCB options 12 mm; Supply / cut options: 12 V → 50 mm cut; Colors / CCT: RGB; IC: 2811; Roll length: 5 m
|
| 720 LEDRGB SPIWS-COB-07-005 | 21 W/m ±10% | 12 mm | 24 V → 50 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-005; RGB SPI; 720 LED; 21 W/m ±10%; PCB options 12 mm; Supply / cut options: 24 V → 50 mm cut; Colors / CCT: RGB; IC: 2811; Roll length: 5 m
|
| 720 LEDRGB SPIWS-COB-07-005 | 12 W/m ±10% | 12 mm | 12 V → 50 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-005; RGB SPI; 720 LED; 12 W/m ±10%; PCB options 12 mm; Supply / cut options: 12 V → 50 mm cut; Colors / CCT: RGB; IC: 2818; Roll length: 5 m
|
| 720 LEDRGB SPIWS-COB-07-005 | 21 W/m ±10% | 12 mm | 24 V → 50 mm |
More specifications
| RGB SPI COB LED Strips; Model WS-COB-07-005; RGB SPI; 720 LED; 21 W/m ±10%; PCB options 12 mm; Supply / cut options: 24 V → 50 mm cut; Colors / CCT: RGB; IC: 2818; Roll length: 5 m
|
