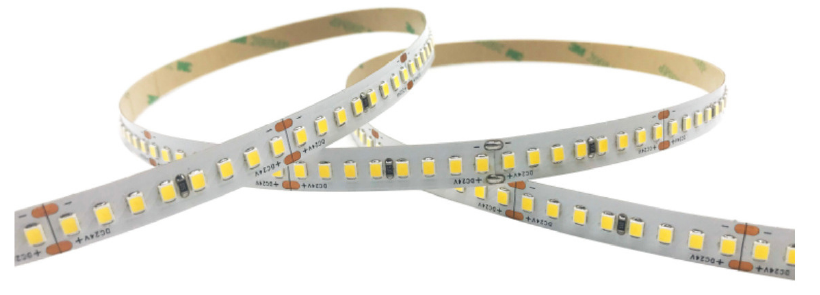

Wide-voltage SMD 2835 LED strip shown in the Wismart V7 catalog

Wide-Voltage Constant-Current SMD 2835 LED Strip Lights

CCT: 2000–6500 K
CRI options: 90 / 95

Options vary by configuration.

DC input only; ranges vary by option.

Specifications

Supply voltageStrip type

6 configurations

Wide-Voltage Constant-Current SMD 2835 LED Strip Lights product options
LEDs / Strip type	Power	PCB width	Voltage → Cut length
120 LEDs/m2835 · Wide-voltage constant-current	Max. 2–14 W/m	10 mm	6.5–18 V DC → 33.33 mm
120 LEDs/m2835 · Wide-voltage constant-current	Max. 2–14 W/m	10 mm	10–30 V DC → 50 mm
120 LEDs/m2835 · Wide-voltage constant-current	Max. 2–14 W/m	8 mm	10–30 V DC → 50 mm
60 LEDs/m2835 · Wide-voltage constant-current	Max. 2–8 W/m	10 mm	18–30 V DC → 83.33 mm
120 LEDs/m2835 · Wide-voltage constant-current	Max. 2–12 W/m	8 mm	18–30 V DC → 41.66 mm
120 LEDs/m2835 · Wide-voltage constant-current	Max. 2–12 W/m	10 mm	18–30 V DC → 41.66 mm

Not all options can be combined.

Drawings

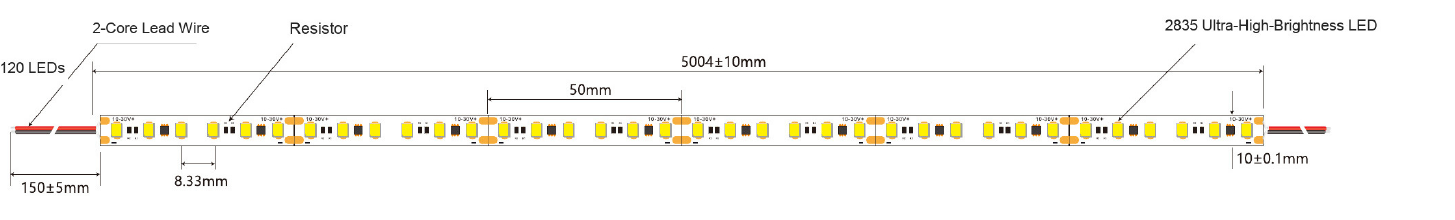

Example 120-LED 2835 strip drawing with a 10 mm PCB and 50 mm cutting interval — **Example dimensions**
Example: 120 LEDs · 10 mm PCB · 50 mm cuts. Not all voltage or PCB options.
View full drawing ↗

Downloads

SMD LED Strip Catalog V7

Full catalog · p. 14

Download PDF ↓
