SMD LED Strip Catalog V7
Full catalog · p. 31
Download PDF ↓
No image for this option.
Specifications
8 configurations
| LEDs / Strip type | Power | PCB width | Voltage → Cut length | More specifications | Select for quote |
|---|---|---|---|---|---|
| 120 LEDs/m3535 · SINGLEWS-SMD-07-033 | 11 W/m | 8 (unit not specified) | 24 V DC → Free cut | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-07-033; 3535; SINGLE; 120 LEDs/m; 11 W/m; Supply / cut options: 24 V DC → Free cut; Colors / CCT: White / Warm / Natural; CRI: 80; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 18/50 copper; Maximum run: 10 m
|
| 180 LEDs/m3535 · SINGLEWS-SMD-07-034 | 15 W/m | 8 (unit not specified) | 24 V DC → Free cut | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-07-034; 3535; SINGLE; 180 LEDs/m; 15 W/m; Supply / cut options: 24 V DC → Free cut; Colors / CCT: White / Warm / Natural; CRI: 80; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 18/50 copper; Maximum run: 10 m
|
| 120 LEDs/m3535 · CCTWS-SMD-04-021 | 12 W/m | 8 (unit not specified) | 24 V DC → Free cut | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-04-021; 3535; CCT; 120 LEDs/m; 12 W/m; Supply / cut options: 24 V DC → Free cut; Colors / CCT: White + Warm; CRI: 90; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 18/50 copper; Maximum run: 10 m
|
| 180 LEDs/m3535 · CCTWS-SMD-04-022 | 15 W/m | 8 (unit not specified) | 24 V DC → Free cut | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-04-022; 3535; CCT; 180 LEDs/m; 15 W/m; Supply / cut options: 24 V DC → Free cut; Colors / CCT: White + Warm; CRI: 90; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 18/50 copper; Maximum run: 10 m
|
| 120 LEDs/m3535 · CCTWS-SMD-04-023 | 11 W/m | 5 (unit not specified) | 24 V DC → Free cut | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-04-023; 3535; CCT; 120 LEDs/m; 11 W/m; Supply / cut options: 24 V DC → Free cut; Colors / CCT: White + Warm; CRI: 90; PCB: 5; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 18/35 copper; Maximum run: 10 m
|
| 120 LEDs/m3535 · FULL SPECTRUMWS-SMD-03-011 | 11 W/m | 8 (unit not specified) | 24 V DC → Free cut | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-03-011; 3535; FULL SPECTRUM; 120 LEDs/m; 11 W/m; Supply / cut options: 24 V DC → Free cut; Colors / CCT: White/Warm/Natural + 2700K/3500K; CRI: 98; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 18/50 copper; Maximum run: 10 m
|
| 180 LEDs/m3535 · FULL SPECTRUMWS-SMD-03-012 | 15 W/m | 8 (unit not specified) | 24 V DC → Free cut | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-03-012; 3535; FULL SPECTRUM; 180 LEDs/m; 15 W/m; Supply / cut options: 24 V DC → Free cut; Colors / CCT: White/Warm/Natural + 2700K/3500K; CRI: 98; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 18/50 copper; Maximum run: 10 m
|

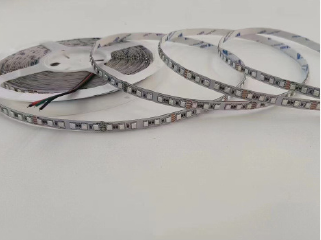

| 120 LEDs/m3535 · RGBWS-SMD-05-029 | 16 W/m | 8 (unit not specified) | 12 V DC24 V DC | More specifications
| 3535 Free-Cut LED Strips; Model WS-SMD-05-029; 3535; RGB; 120 LEDs/m; 16 W/m; Supply / cut options: 12 V DC; Colors / CCT: RGB; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 2 oz copper; Maximum run: 10 m3535 Free-Cut LED Strips; Model WS-SMD-05-029; 3535; RGB; 120 LEDs/m; 16 W/m; Supply / cut options: 24 V DC; Colors / CCT: RGB; PCB: 8; Luminous flux: 24-26 lm/LED; IP rating: IP20; Copper: 2 oz copper; Maximum run: 10 m
|
