SMD LED Strip Catalog V7
Full catalog · p. 20
Download PDF ↓
No image for this option.

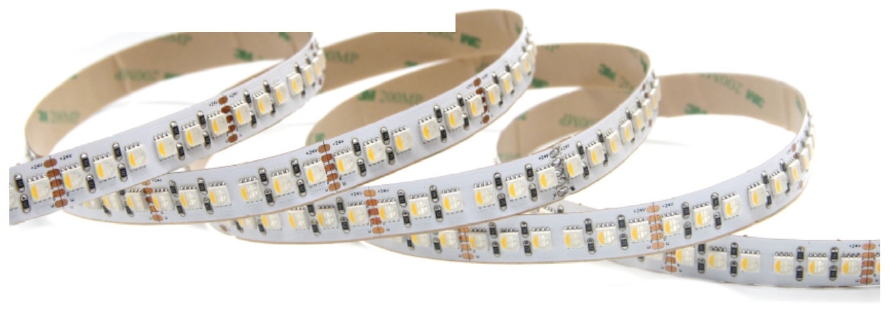

RGB / RGBW / RGBCWW LED Strip Lights
Specifications
23 configurations
| LEDs / Strip type | Power | PCB width | Voltage → Cut length | More specifications | Select for quote |
|---|---|---|---|---|---|
| 120 LEDs/m2835 · RGB | Max. 16 W/m | 8 mm | 12 V DC → 25 mm24 V DC → 50 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 2835; RGB; 120 LEDs/m; Max. 16 W/m; PCB options 8 mm; Supply / cut options: 12 V DC → 25 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 2835; RGB; 120 LEDs/m; Max. 16 W/m; PCB options 8 mm; Supply / cut options: 24 V DC → 50 mm cut; Colors / CCT: RGB
|
| 120 LEDs/m2835 · RGB | Max. 18 W/m | 10 mm | 12 V DC → 25 mm24 V DC → 50 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 2835; RGB; 120 LEDs/m; Max. 18 W/m; PCB options 10 mm; Supply / cut options: 12 V DC → 25 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 2835; RGB; 120 LEDs/m; Max. 18 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 50 mm cut; Colors / CCT: RGB
|
| 120 LEDs/m3535 · RGB | Max. 16 W/m | 8 mm | 12 V DC → 25 mm24 V DC → 50 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 3535; RGB; 120 LEDs/m; Max. 16 W/m; PCB options 8 mm; Supply / cut options: 12 V DC → 25 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 3535; RGB; 120 LEDs/m; Max. 16 W/m; PCB options 8 mm; Supply / cut options: 24 V DC → 50 mm cut; Colors / CCT: RGB
|
| 120 LEDs/m3535 · RGB | Max. 20 W/m | 10 mm | 24 V DC → 50 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 3535; RGB; 120 LEDs/m; Max. 20 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 50 mm cut; Colors / CCT: RGB
|
| 30 LEDs/m5050 · RGB | Max. 7.2 W/m | 10 mm | 12 V DC → 100 mm24 V DC → 166.6 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 30 LEDs/m; Max. 7.2 W/m; PCB options 10 mm; Supply / cut options: 12 V DC → 100 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 30 LEDs/m; Max. 7.2 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 166.6 mm cut; Colors / CCT: RGB
|
| 60 LEDs/m5050 · RGB | Max. 14.4 W/m | 10 mm | 12 V DC → 50 mm24 V DC → 100 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 60 LEDs/m; Max. 14.4 W/m; PCB options 10 mm; Supply / cut options: 12 V DC → 50 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 60 LEDs/m; Max. 14.4 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 100 mm cut; Colors / CCT: RGB
|
| 72 LEDs/m5050 · RGB | Max. 17.3 W/m | 10 mm | 12 V DC → 41.67 mm24 V DC → 83.33 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 72 LEDs/m; Max. 17.3 W/m; PCB options 10 mm; Supply / cut options: 12 V DC → 41.67 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 72 LEDs/m; Max. 17.3 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 83.33 mm cut; Colors / CCT: RGB
|
| 84 LEDs/m5050 · RGB | Max. 20 W/m | 10 mm | 24 V DC → 71.43 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 84 LEDs/m; Max. 20 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 71.43 mm cut; Colors / CCT: RGB
|
| 96 LEDs/m5050 · RGB | Max. 23 W/m | 10 mm | 12 V DC → 31.25 mm24 V DC → 62.5 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 96 LEDs/m; Max. 23 W/m; PCB options 10 mm; Supply / cut options: 12 V DC → 31.25 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB; 96 LEDs/m; Max. 23 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 62.5 mm cut; Colors / CCT: RGB
|
| 120 LEDs/m5050 · RGB / Double row | Max. 24 W/m | 15 mm | 12 V DC → 50 mm24 V DC → 50 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB / Double row; 120 LEDs/m; Max. 24 W/m; PCB options 15 mm; Supply / cut options: 12 V DC → 50 mm cut; Colors / CCT: RGBRGB / RGBW / RGBCWW LED Strip Lights; 5050; RGB / Double row; 120 LEDs/m; Max. 24 W/m; PCB options 15 mm; Supply / cut options: 24 V DC → 50 mm cut; Colors / CCT: RGB
|
| 30 LEDs/m5050 · 4-in-1 LED | Max. 9.6 W/m | 10 mm | 12 V DC → 100 mm24 V DC → 166.6 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 30 LEDs/m; Max. 9.6 W/m; PCB options 10 mm; Supply / cut options: 12 V DC → 100 mm cut; Colors / CCT: RGBWRGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 30 LEDs/m; Max. 9.6 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 166.6 mm cut; Colors / CCT: RGBW
|
| 60 LEDs/m5050 · 4-in-1 LED | Max. 14.4 W/m | 10 mm | 24 V DC → 100 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 60 LEDs/m; Max. 14.4 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 100 mm cut; Colors / CCT: RGBW
|
| 96 LEDs/m5050 · 4-in-1 LED | Max. 20 W/m | 10 mm | 24 V DC → 62.5 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 96 LEDs/m; Max. 20 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 62.5 mm cut; Colors / CCT: RGBW
|
| 60 LEDs/m5050 · 4-in-1 LED | Max. 19.2 W/m | 12 mm | 12 V DC → 50 mm24 V DC → 100 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 60 LEDs/m; Max. 19.2 W/m; PCB options 12 mm; Supply / cut options: 12 V DC → 50 mm cut; Colors / CCT: RGBWRGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 60 LEDs/m; Max. 19.2 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 100 mm cut; Colors / CCT: RGBW
|
| 84 LEDs/m5050 · 4-in-1 LED | Max. 22 W/m | 12 mm | 24 V DC → 71.43 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 84 LEDs/m; Max. 22 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 71.43 mm cut; Colors / CCT: RGBW
|
| 96 LEDs/m5050 · 4-in-1 LED | Max. 24 W/m | 12 mm | 24 V DC → 62.5 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED; 96 LEDs/m; Max. 24 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 62.5 mm cut; Colors / CCT: RGBW
|
| 120 LEDs/m5050 · 4-in-1 LED / Single row | Max. 28.8 W/m | 14 mm | 24 V DC → 50 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED / Single row; 120 LEDs/m; Max. 28.8 W/m; PCB options 14 mm; Supply / cut options: 24 V DC → 50 mm cut; Colors / CCT: RGBW
|
| 168 LEDs/m5050 · 4-in-1 LED / Double row | Max. 30 W/m | 20 mm | 24 V DC → 35.71 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 4-in-1 LED / Double row; 168 LEDs/m; Max. 30 W/m; PCB options 20 mm; Supply / cut options: 24 V DC → 35.71 mm cut; Colors / CCT: RGBW
|
| 120 LEDs/m5050 + 2835 · 5050 RGB + 2835 W | Max. 22.4 W/m | 12 mm | 24 V DC → 100 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050 + 2835; 5050 RGB + 2835 W; 120 LEDs/m; Max. 22.4 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 100 mm cut; Colors / CCT: RGBW
|
| 168 LEDs/m3535 + 2835 · 3535 RGB + 2835 W | Max. 23 W/m | 12 mm | 24 V DC → 83.33 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 3535 + 2835; 3535 RGB + 2835 W; 168 LEDs/m; Max. 23 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 83.33 mm cut; Colors / CCT: RGBW
|
| 30 LEDs/m5050 · 5-in-1 LED | Max. 10 W/m | 12 mm | 12 V DC → 100 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 5-in-1 LED; 30 LEDs/m; Max. 10 W/m; PCB options 12 mm; Supply / cut options: 12 V DC → 100 mm cut; Colors / CCT: RGBCWW
|
| 60 LEDs/m5050 · 5-in-1 LED | Max. 22 W/m | 12 mm | 12 V DC → 50 mm24 V DC → 100 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 5-in-1 LED; 60 LEDs/m; Max. 22 W/m; PCB options 12 mm; Supply / cut options: 12 V DC → 50 mm cut; Colors / CCT: RGBCWWRGB / RGBW / RGBCWW LED Strip Lights; 5050; 5-in-1 LED; 60 LEDs/m; Max. 22 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 100 mm cut; Colors / CCT: RGBCWW
|
| 96 LEDs/m5050 · 5-in-1 LED | Max. 24 W/m | 12 mm | 24 V DC → 62.5 mm | More specifications
| RGB / RGBW / RGBCWW LED Strip Lights; 5050; 5-in-1 LED; 96 LEDs/m; Max. 24 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 62.5 mm cut; Colors / CCT: RGBCWW
|
No matching options. Reset filters to try again.
Not all options can be combined.
Drawings

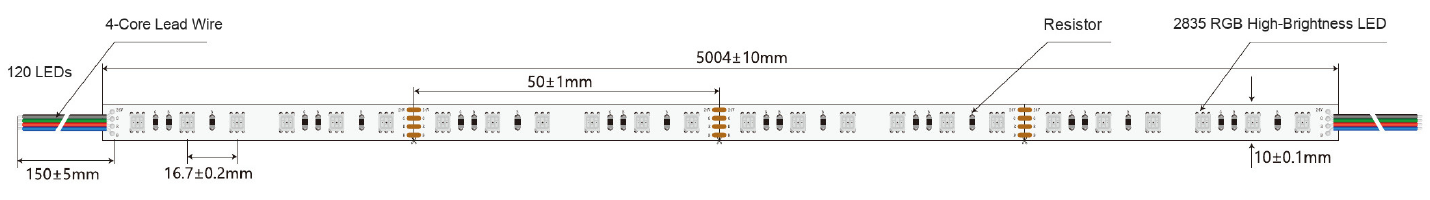

Example 2835 RGB strip with a 4-core lead wire, a nominal 10 mm PCB and a 50 mm cutting interval. This is an RGB example, not a wiring or dimension specification for every RGBW or RGBCWW configuration.
View full drawing ↗No drawing for this option. Request a matching drawing.
Downloads
No document for this option.
