SMD LED Strip Catalog V7
Full catalog · p. 16
Download PDF ↓
No image for this option.
Specifications
6 configurations
| LEDs / Strip type | Power | PCB width | Voltage → Cut length | More specifications | Select for quote |
|---|---|---|---|---|---|
| 60 LEDs/m2835 · Single color | Max. 2–8 W/m | 10 mm | 24 V DC → 83.33 mm | More specifications
| Long-Run Constant-Current LED Strip Lights; 2835; Single color; 60 LEDs/m; Max. 2–8 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 83.33 mm cut; Colors / CCT: 2000–6500 K
|
| 120 LEDs/m2835 · Single color | Max. 2–12 W/m | 8 mm | 24 V DC → 41.66 mm | More specifications
| Long-Run Constant-Current LED Strip Lights; 2835; Single color; 120 LEDs/m; Max. 2–12 W/m; PCB options 8 mm; Supply / cut options: 24 V DC → 41.66 mm cut; Colors / CCT: 2000–6500 K
|
| 120 LEDs/m2835 · Single color | Max. 2–12 W/m | 10 mm | 24 V DC → 41.66 mm | More specifications
| Long-Run Constant-Current LED Strip Lights; 2835; Single color; 120 LEDs/m; Max. 2–12 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 41.66 mm cut; Colors / CCT: 2000–6500 K
|
| 120 LEDs/m2835 · Single color | Max. 2–12 W/m | 8 / 10 mm | 48 V DC → 100 mm | More specifications
| Long-Run Constant-Current LED Strip Lights; 2835; Single color; 120 LEDs/m; Max. 2–12 W/m; PCB options 8 / 10 mm; Supply / cut options: 48 V DC → 100 mm cut; Colors / CCT: 2000–6500 K
|
| 120 LEDs/m2835 · Tunable white | Max. 2–12 W/m | 10 mm | 24 V DC → 83.33 mm | More specifications
| Long-Run Constant-Current LED Strip Lights; 2835; Tunable white; 120 LEDs/m; Max. 2–12 W/m; PCB options 10 mm; Supply / cut options: 24 V DC → 83.33 mm cut; Colors / CCT: Tunable white
|
| 70 LEDs/m5050 · RGBW | Max. 6–14.4 W/m | 12 mm | 24 V DC → 71.43 mm | More specifications
| Long-Run Constant-Current LED Strip Lights; 5050; RGBW; 70 LEDs/m; Max. 6–14.4 W/m; PCB options 12 mm; Supply / cut options: 24 V DC → 71.43 mm cut; Colors / CCT: RGBW
|
No matching options. Reset filters to try again.
Not all options can be combined.
Drawings

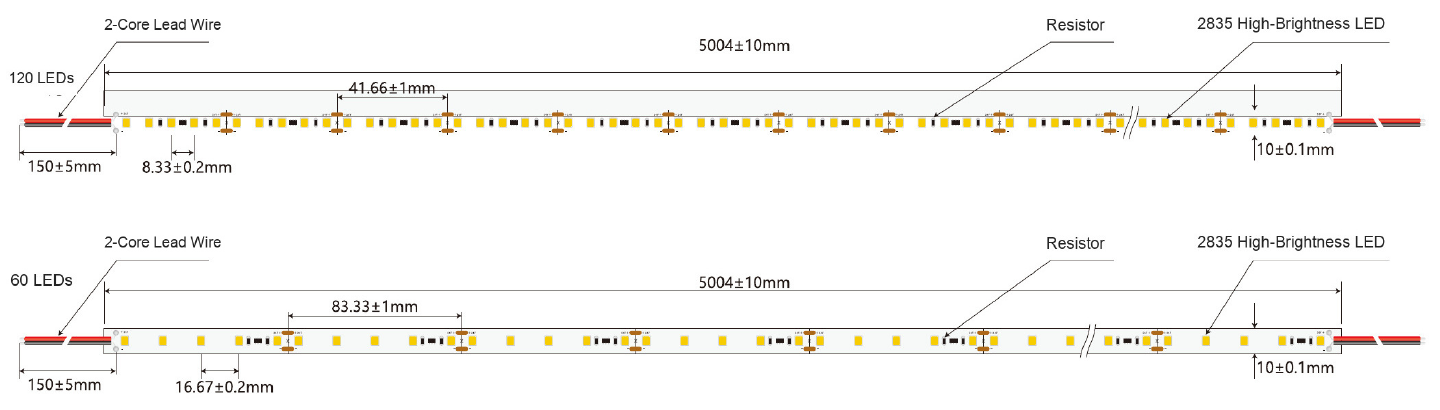

Example 2835 drawings: 120 LEDs/m with a 10 mm PCB and 41.66 mm cutting interval; 60 LEDs/m with a 10 mm PCB and 83.33 mm cutting interval.
View full drawing ↗No drawing for this option. Request a matching drawing.
