SMD Strip Lights

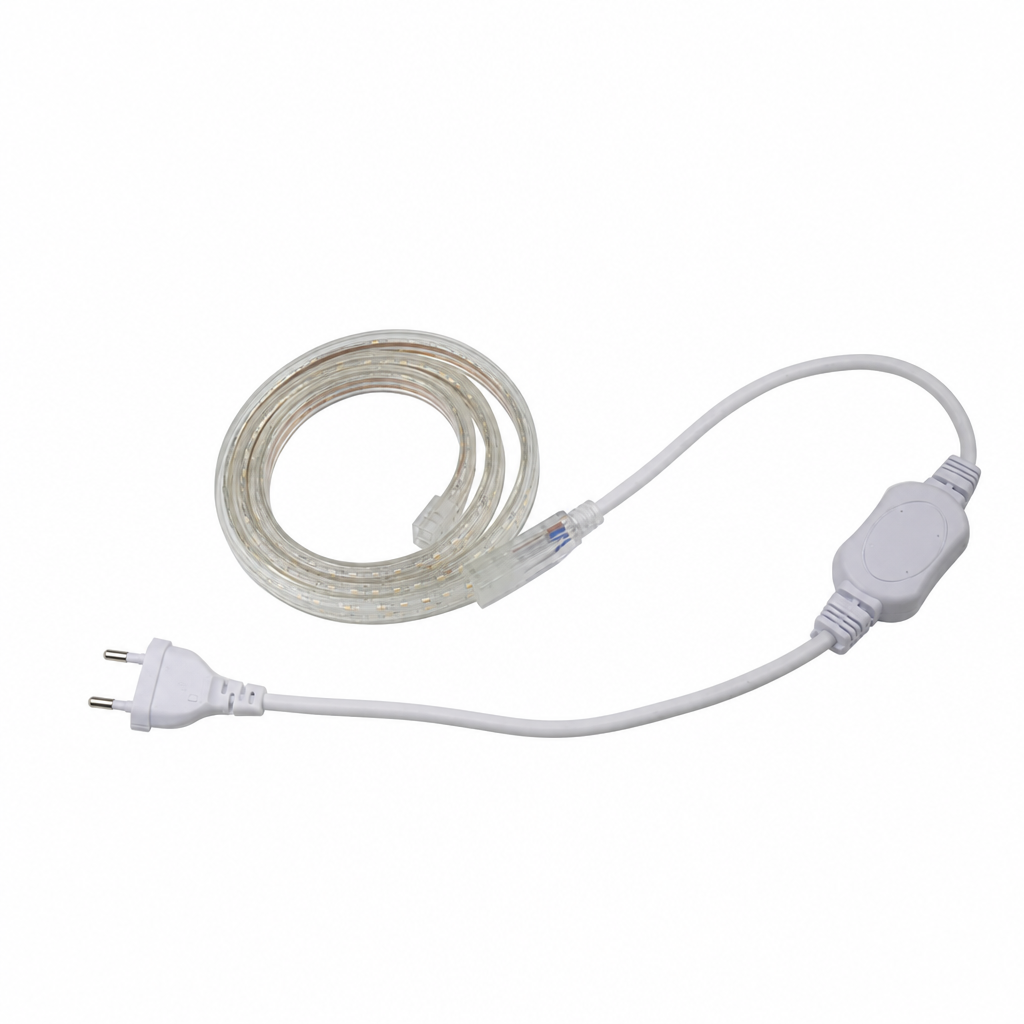

High Voltage SMD main product view
High Voltage SMD
220V SMD strips for long runs, subject to local compliance and installation requirements.
Series overview
220V SMD strips for long runs, subject to local compliance and installation requirements.
High-voltage SMD should be treated as a compliance-sensitive product decision.
Confirmed density options support long-run commercial comparisons.
Representative rows include 8W and 16W options where confirmed.
Target market and installer capability must be checked before positioning.
Series Gallery

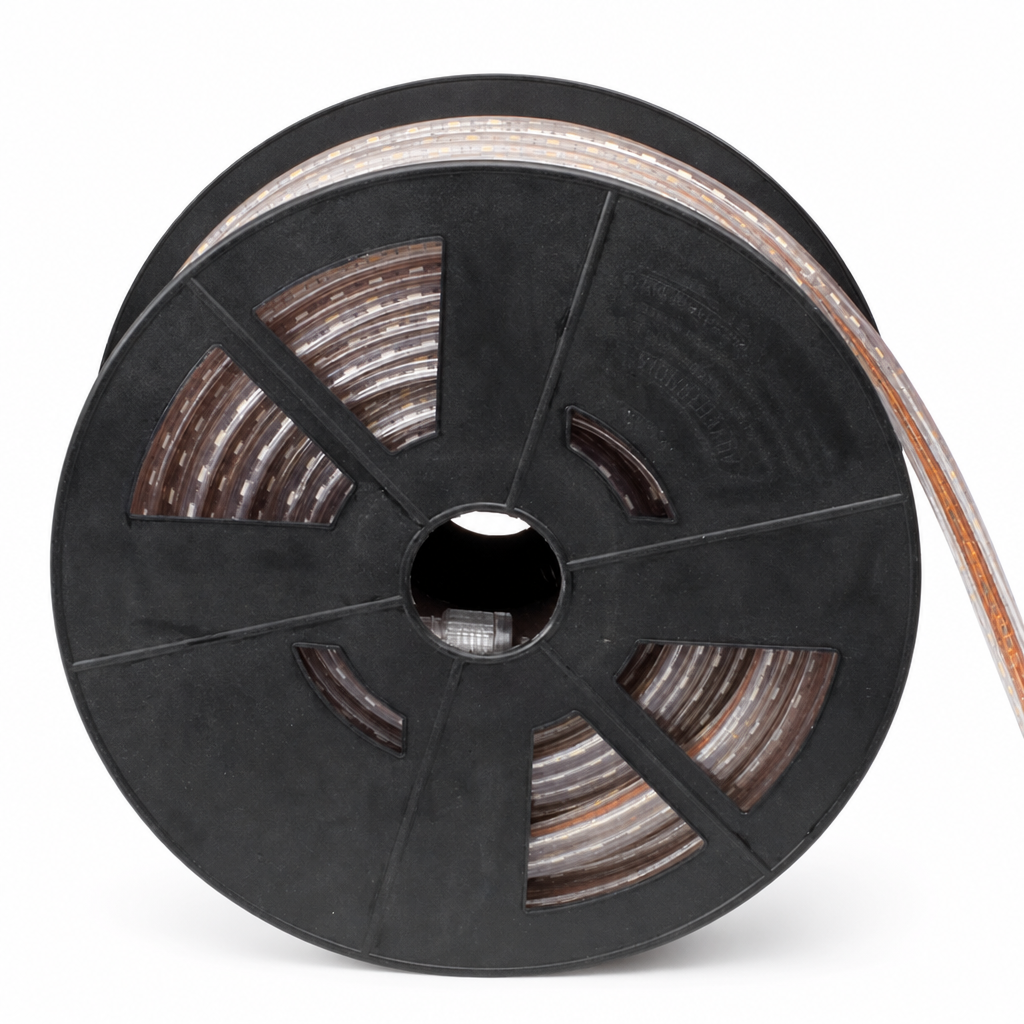

Product views for High Voltage SMD
Compare strip structure, PCB width and appearance.
Application Match
Typical use cases for High Voltage SMD
Check whether the series meets your installation and sample requirements.
Long commercial runs where high voltage is requested
High Voltage SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Markets familiar with high-voltage LED strip installation
High Voltage SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects comparing lower feed complexity
High Voltage SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Distributor programs requiring local compliance review
High Voltage SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Static-color high-voltage strip discussions
High Voltage SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Projects requiring target-market compliance review
High Voltage SMD can be positioned for this use case after voltage, color, structure, and installation details are aligned.
Series Parameters
Key parameters for High Voltage SMD
Compare voltage, color and structure for your installation.
| Item | Specification | Commercial note |
|---|---|---|
| LED package | High-voltage 2835 series | Compare LED package, brightness and cost. |
| Supply voltage | 220V confirmed catalog option | Check run length, controller and power supply before sample approval. |
| Color / control | White-light plus selected static-color paths | Specify the light color and control requirements. |
| Output | 120-240 LEDs/m high-voltage option | Confirm wattage for the selected model. |
| IP / protection structure | IP20 and IP65/IP68 listed protection paths; compliance review required before use | Protection method should follow the environment risk, not only a generic IP request. |
| Typical applications | Long-run commercial supply discussions where high-voltage handling is required | Check the model against your installation requirements. |
Catalog Model Table
Confirmed SMD catalog model options
Compare the listed models. Confirm any wattage marked To confirm before ordering.
| Model No. | Voltage | Power/m | LEDs/m | Color | CRI | PCB / IP |
|---|---|---|---|---|---|---|
| WS-HV2835-FS-120 | 220V | 8W | 120 | White / Warm / Neutral | 98 | 8mm PCB / IP20 |
| WS-HV2835-120-IRON | 220V | 8W | 120 | White / Warm / Neutral | 80 | 8mm PCB / IP20 |
| WS-HV2835-120-FULLTIN | 220V | 8W | 120 | White / Warm / Neutral / Static Colors | - | PCB to confirm / IP20 |
| WS-HV2835-120-ECO | 220V | 8W | 120 | White / Warm / Neutral | - | PCB to confirm / IP20 |
| WS-HV2835-240D | 220V | 16W | 240 | White / Warm / Neutral | - | PCB to confirm / IP20 |
Order Preparation
What should be aligned before sample or production
Confirm samples, drawings, packaging and production requirements.
Confirm LED package and cost target
Choose the LED package, color and protection requirements before comparing prices.
Confirm power, color, and control
Confirm voltage, wattage, white-light or RGB control requirements before requesting samples.
Confirm adhesive and protection
Outdoor, humid-area, or profile-mounted projects need the protection and fixing method decided early.
Confirm reel, carton, and OEM details
Mixed SKU packing, barcode, reel length, and private-label requests should be closed before production slotting.
Sourcing Checklist
What should be confirmed before quoting this series
Confirm specifications, installation requirements and quantity before requesting samples or a quotation.
Confirm target market, voltage standard, installation responsibility, and compliance requirement before quoting.
Do not recommend this series if local safety, certification, or installer capability is unclear.
Confirm IP requirement separately because high-voltage and waterproof requirements are different decisions.
Choose low-voltage SMD or COB if high-voltage installation is not required.
Sales Support Requests
Common request points before sample and quotation
Request datasheets, drawings, samples or OEM packing details.
Datasheet & parameter sheet
Request the latest High Voltage SMD datasheet.
Request DatasheetDrawing & cut-point review
Request width, cut interval, mounting, and installation drawing support before sampling.
Request Drawing ReviewSample and lead-time planning
Confirm sample quantity, finish and shipment timing.
Plan SamplesOEM label and carton support
Reserve space for private label, barcode, outer-carton, and mixed-SKU packing requirements.
Discuss OEM Packing
Series FAQ
Series questions
Check suitability, specifications and sample requirements.
Why is compliance mentioned so strongly?
High-voltage products depend on market rules and installer capability, so they should not be treated like simple low-voltage strips.
When is high-voltage SMD useful?
For long runs that require high-voltage installation, subject to local compliance requirements.
Can it replace 24V long-run SMD?
Only after reviewing market, safety, driver, and installation constraints. It is not a casual substitute.
What must be sent first?
Target country, installation context, voltage requirement, IP target, quantity, and certification expectations.
Ready to quote High Voltage SMD?
Send voltage, light output, color, quantity and application.
