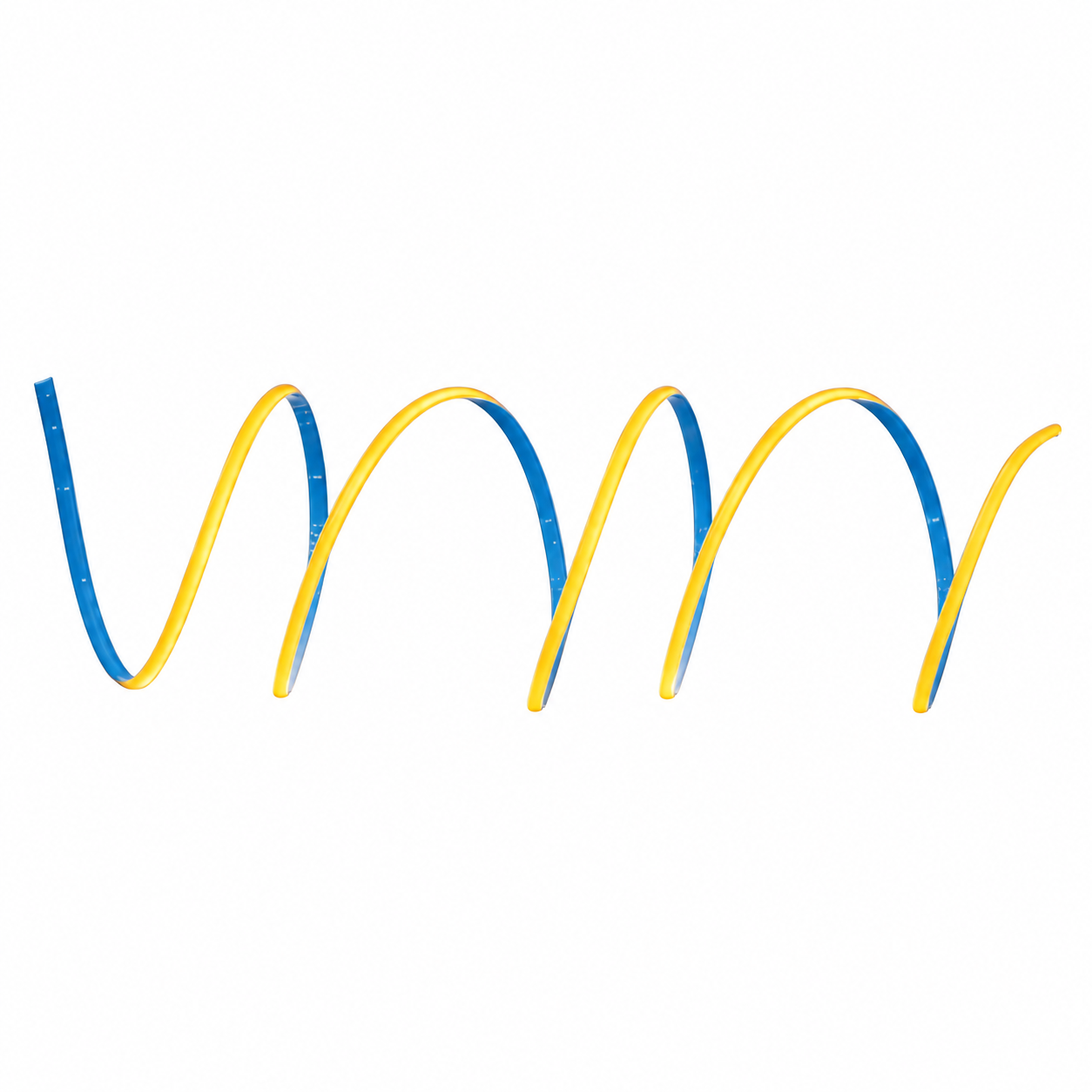

4 / 5 mm — Wismart COB — 4 / 5 mm series illustration.

Ultra-Narrow COB LED Strips

PCB widths: 2.7 / 3 / 4 / 5 mm
Voltage options: 5 V / 12 V / 24 V

Specifications

Supply voltageStrip type

16 configurations

Ultra-Narrow COB LED Strips product options
LED quantity / Strip type	Power	PCB width	Voltage → Cut length	More specifications
400 LEDUltra narrowWS-COB-03-001	5.5 W/m ±10%	2.7 mm	5 V → 10 mm	Colors / CCT 2900K-3200K / 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy >60 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-001	7 W/m ±10%	2.7 mm	12 V → 10 mm	Colors / CCT 2900K-3200K CRI ≥90 More specifications Efficacy >80 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-001	7 W/m ±10%	2.7 mm	24 V → 20 mm	Colors / CCT 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy >80 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-002	5.5 W/m ±10%	3 mm	5 V → 10 mm	Colors / CCT 2900K-3200K / 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy >60 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-002	7 W/m ±10%	3 mm	12 V → 10 mm	Colors / CCT 2900K-3200K CRI ≥90 More specifications Efficacy >80 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-002	7 W/m ±10%	3 mm	24 V → 20 mm	Colors / CCT 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy >80 lm/W (±10%) Roll length 5 m
384 LEDUltra narrowWS-COB-03-002	7 W/m ±10%	3 mm	12 V → 20.83 mm	Colors / CCT 2700K ±150K / 3000K ±150K CRI ≥90 More specifications Efficacy ≥90 lm/W (±10%) Roll length 5 m
384 LEDUltra narrowWS-COB-03-002	7 W/m ±10%	3 mm	24 V → 41.66 mm	Colors / CCT 4000K ±150K / 6000K ±150K CRI ≥90 More specifications Efficacy ≥90 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-003	5.5 W/m ±10%	4 mm	5 V → 10 mm	Colors / CCT 2900K-3200K / 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy >60 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-003	10 W/m ±10%	4 mm	12 V → 10 mm	Colors / CCT 2900K-3200K CRI ≥90 More specifications Efficacy >80 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-003	10 W/m ±10%	4 mm	24 V → 20 mm	Colors / CCT 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy >80 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-004	8 W/m ±10%	5 mm	5 V → 10 mm	Colors / CCT 2900K-3200K / 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy 80 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-004	10 W/m ±10%	5 mm	12 V → 10 mm	Colors / CCT 2900K-3200K CRI ≥90 More specifications Efficacy 80 lm/W (±10%) Roll length 5 m
400 LEDUltra narrowWS-COB-03-004	10 W/m ±10%	5 mm	24 V → 20 mm	Colors / CCT 3900K-4300K / 6000K-6500K CRI ≥90 More specifications Efficacy 80 lm/W (±10%) Roll length 5 m
384 LEDUltra narrowWS-COB-03-004	10 W/m ±10%	5 mm	12 V → 20.83 mm	Colors / CCT 2700K ±150K / 3000K ±150K CRI ≥90 More specifications Efficacy ≥90 lm/W (±10%) Roll length 5 m
384 LEDUltra narrowWS-COB-03-004	10 W/m ±10%	5 mm	24 V → 41.66 mm	Colors / CCT 4000K ±150K / 6000K ±150K CRI ≥90 More specifications Efficacy ≥90 lm/W (±10%) Roll length 5 m

Drawings

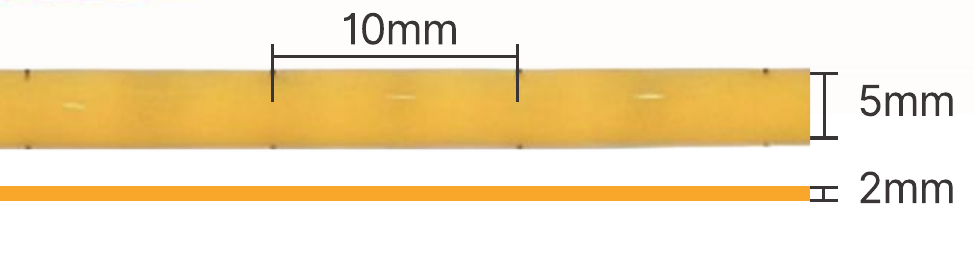

5 mm drawing — Wismart COB — **5 mm drawing**
5 mm width / 10 mm cut example.
View full drawing ↗

Downloads

COB LED Strip Catalog V1

Download PDF ↓
