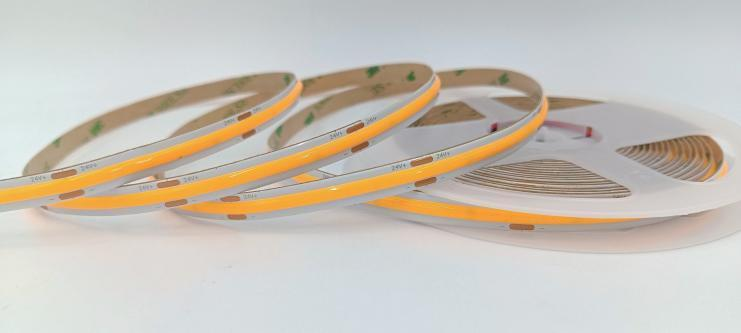

8 mm Single-Color COB LED Strips
- PCB widths
- 8 mm
- Voltage options
- 5 V / 12 V / 24 V
Specifications
15 configurations
| LED quantity / Strip type | Power | PCB width | Voltage → Cut length | More specifications | Select for quote |
|---|---|---|---|---|---|
| 312 LEDSingle colorWS-COB-01-002 | 11 W/m ±10% | 8 mm | 12 V → 38.46 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 312 LED; 11 W/m ±10%; PCB options 8 mm; Supply / cut options: 12 V → 38.46 mm cut; Efficacy: ≥70 lm/W (±10%); Colors / CCT: 3000K ±150K; CRI: ≥90; Roll length: 10 m
|
| 312 LEDSingle colorWS-COB-01-002 | 11 W/m ±10% | 8 mm | 24 V → 38.46 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 312 LED; 11 W/m ±10%; PCB options 8 mm; Supply / cut options: 24 V → 38.46 mm cut; Efficacy: ≥70 lm/W (±10%); Colors / CCT: 4000K ±150K / 6000K ±150K; CRI: ≥90; Roll length: 10 m
|
| 320 LEDSingle colorWS-COB-01-002 | 8 W/m ±10% | 8 mm | 12 V → 25 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 320 LED; 8 W/m ±10%; PCB options 8 mm; Supply / cut options: 12 V → 25 mm cut; Efficacy: ≥80 lm/W (±10%); Colors / CCT: 3000K ±150K; CRI: ≥80; Roll length: 5 m
|
| 320 LEDSingle colorWS-COB-01-002 | 8 W/m ±10% | 8 mm | 24 V → 50 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 320 LED; 8 W/m ±10%; PCB options 8 mm; Supply / cut options: 24 V → 50 mm cut; Efficacy: ≥80 lm/W (±10%); Colors / CCT: 4000K ±150K / 6000K ±150K; CRI: ≥80; Roll length: 10 m
|
| 320 LEDSingle colorWS-COB-01-002 | 8 W/m ±10% | 8 mm | 12 V → 25 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 320 LED; 8 W/m ±10%; PCB options 8 mm; Supply / cut options: 12 V → 25 mm cut; Efficacy: ≥80 lm/W (±10%); Colors / CCT: 3000K ±150K; CRI: ≥80; Roll length: 10 m
|
| 480 LEDSingle colorWS-COB-01-002 | 10.5 W/m ±10% | 8 mm | 12 V → 25 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 480 LED; 10.5 W/m ±10%; PCB options 8 mm; Supply / cut options: 12 V → 25 mm cut; Efficacy: >90 lm/W (±10%); Colors / CCT: 3000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 480 LEDSingle colorWS-COB-01-002 | 10.5 W/m ±10% | 8 mm | 24 V → 50 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 480 LED; 10.5 W/m ±10%; PCB options 8 mm; Supply / cut options: 24 V → 50 mm cut; Efficacy: >90 lm/W (±10%); Colors / CCT: 4000K ±150K / 6000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 320 LEDSingle colorWS-COB-01-002 | 8 W/m ±10% | 8 mm | 12 V → 25 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 320 LED; 8 W/m ±10%; PCB options 8 mm; Supply / cut options: 12 V → 25 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 2700K ±150K / 3000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 320 LEDSingle colorWS-COB-01-002 | 8 W/m ±10% | 8 mm | 24 V → 50 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 320 LED; 8 W/m ±10%; PCB options 8 mm; Supply / cut options: 24 V → 50 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 4000K ±150K / 6000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 384 LEDSingle colorWS-COB-01-002 | 10 W/m ±10% | 8 mm | 12 V → 41.66 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 384 LED; 10 W/m ±10%; PCB options 8 mm; Supply / cut options: 12 V → 41.66 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 2700K ±150K / 3000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 384 LEDSingle colorWS-COB-01-002 | 10 W/m ±10% | 8 mm | 24 V → 41.66 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 384 LED; 10 W/m ±10%; PCB options 8 mm; Supply / cut options: 24 V → 41.66 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 4000K ±150K / 6000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 480 LEDSingle colorWS-COB-01-002 | 11 W/m ±10% | 8 mm | 12 V → 25 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 480 LED; 11 W/m ±10%; PCB options 8 mm; Supply / cut options: 12 V → 25 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 2700K ±150K / 3000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 480 LEDSingle colorWS-COB-01-002 | 11 W/m ±10% | 8 mm | 24 V → 50 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 480 LED; 11 W/m ±10%; PCB options 8 mm; Supply / cut options: 24 V → 50 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 4000K ±150K / 6000K ±150K; CRI: ≥90; Roll length: 5 m
|
| 320 LEDSingle colorWS-COB-01-002 | 14 W/m ±10% | 8 mm | 5 V → 50 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 320 LED; 14 W/m ±10%; PCB options 8 mm; Supply / cut options: 5 V → 50 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 6000K ±150K; CRI: ≥80; Roll length: 5 m
|
| 320 LEDSingle colorWS-COB-01-002 | 8 W/m ±10% | 8 mm | 5 V → 50 mm |
More specifications
| 8 mm Single-Color COB LED Strips; Model WS-COB-01-002; Single color; 320 LED; 8 W/m ±10%; PCB options 8 mm; Supply / cut options: 5 V → 50 mm cut; Efficacy: ≥90 lm/W (±10%); Colors / CCT: 3000K ±150K / 4000K ±150K; CRI: ≥80; Roll length: 5 m
|
No matching options. Reset filters to try again.
Drawings

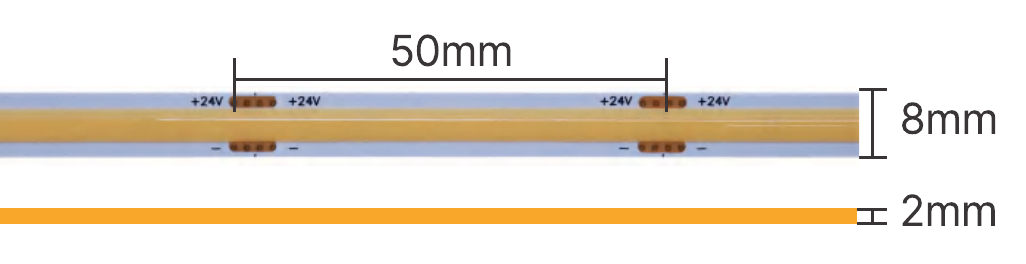

24 V / 50 mm cut example.
View full drawing ↗No drawing for this option. Request a matching drawing.
