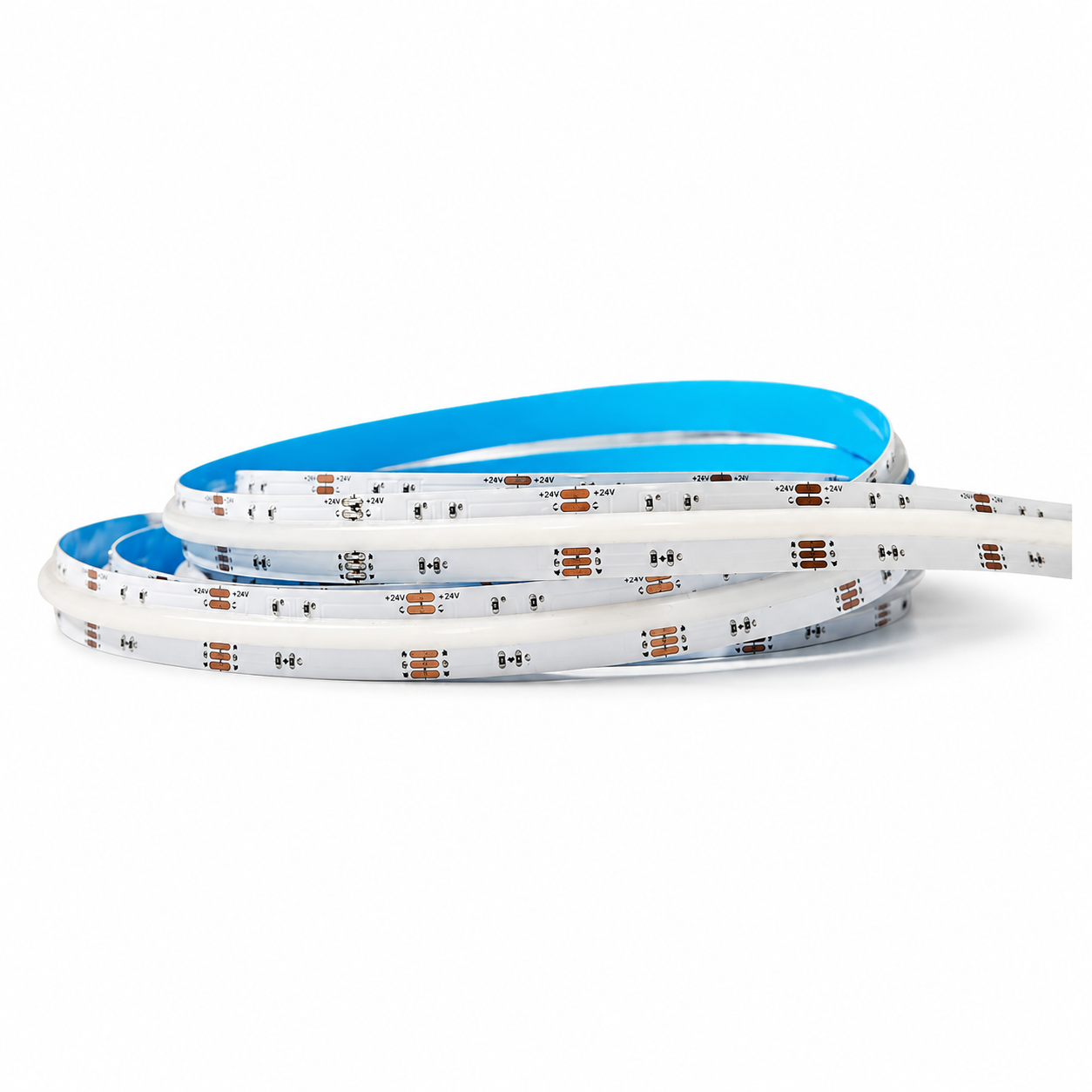

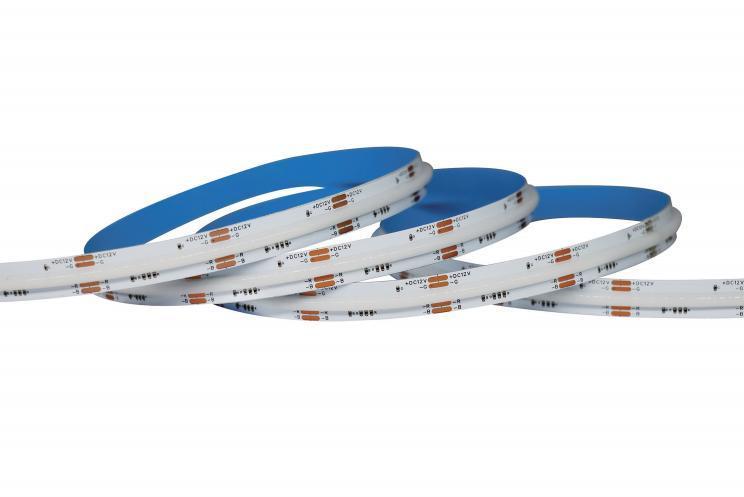

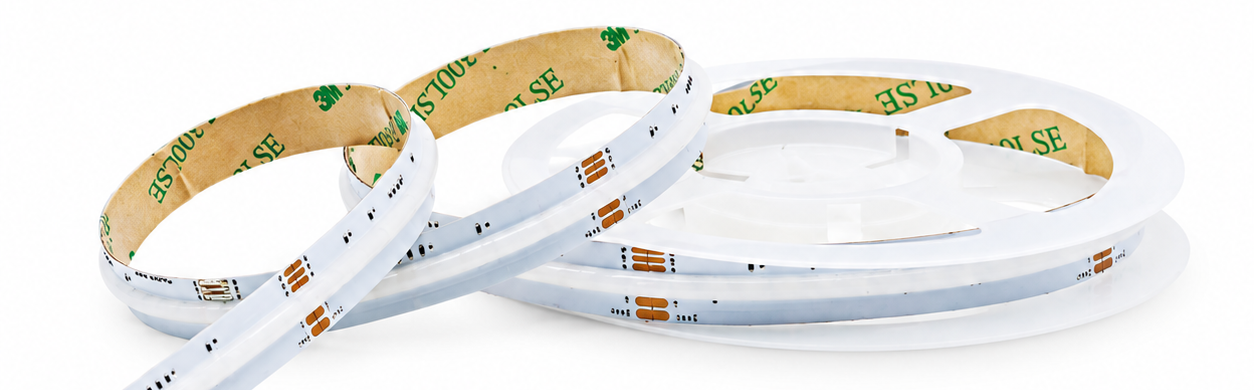

RGB / RGBW / RGBCW COB LED Strips

PCB widths: 5 / 8 / 10 / 12 mm
Voltage options: 5 V / 12 V / 24 V

Specifications

Supply voltageStrip type

15 configurations

RGB / RGBW / RGBCW COB LED Strips product options
LED quantity / Strip type	Power	PCB width	Voltage → Cut length	More specifications
576 LEDRGBWS-COB-06-005	14 W/m ±10%	10 mm	12 V → 31.25 mm	Colors / CCT RGB More specifications Roll length 5 m
576 LEDRGBWS-COB-06-005	14 W/m ±10%	10 mm	24 V → 31.25 mm	Colors / CCT RGB More specifications Roll length 5 m
576 LEDRGBWS-COB-06-006	10 W/m ±10%	5 mm	12 V → 31.25 mm24 V → 31.25 mm	Colors / CCT RGB More specifications Roll length 5 m
576 LEDRGBWS-COB-06-006	10 W/m ±10%	5 mm	5 V → 20.83 mm	Colors / CCT RGB More specifications Roll length 5 m
576 LEDRGBWS-COB-06-007	7 W/m ±10%	8 mm	5 V → 20.83 mm	Colors / CCT RGB More specifications Roll length 5 m
576 LEDRGBWS-COB-06-007	10 W/m ±10%	8 mm	12 V → 31.25 mm	Colors / CCT RGB More specifications Roll length 5 m
576 LEDRGBWS-COB-06-005	14 W/m ±10%	10 mm	24 V → 62.5 mm	Colors / CCT RGB More specifications Roll length 5 m
756 LEDRGBWS-COB-06-005	14 W/m ±10%	10 mm	12 V → 23.81 mm	Colors / CCT RGB More specifications Roll length 5 m
768 LEDRGBWS-COB-06-005	14 W/m ±10%	10 mm	24 V → 31.26 mm	Colors / CCT RGB More specifications Roll length 5 m
810 LEDRGBWS-COB-06-005	14 W/m ±10%	10 mm	12 V → 33.33 mm	Colors / CCT RGB More specifications Roll length 5 m
840 LEDRGBWS-COB-06-005	14 W/m ±10%	10 mm	24 V → 50 mm	Colors / CCT RGB More specifications Roll length 5 m
1080 LEDRGBWS-COB-06-003	14 W/m ±10%	12 mm	24 V → 50 mm	Colors / CCT RGB More specifications Roll length 5 m
784 LEDRGBWWS-COB-06-002	19 W/m ±10%	12 mm	24 V → 71.42 mm	Colors / CCT RGBW More specifications Roll length 5 m
840 LEDRGBCWWS-COB-06-001	21 W/m ±10%	12 mm	24 V → 35.71 mm	Colors / CCT RGBCW More specifications Roll length 5 m
720 LEDRGBCWWS-COB-06-001	21 W/m ±10%	12 mm	24 V → 83.33 mm	Colors / CCT RGBCW More specifications Roll length 5 m
